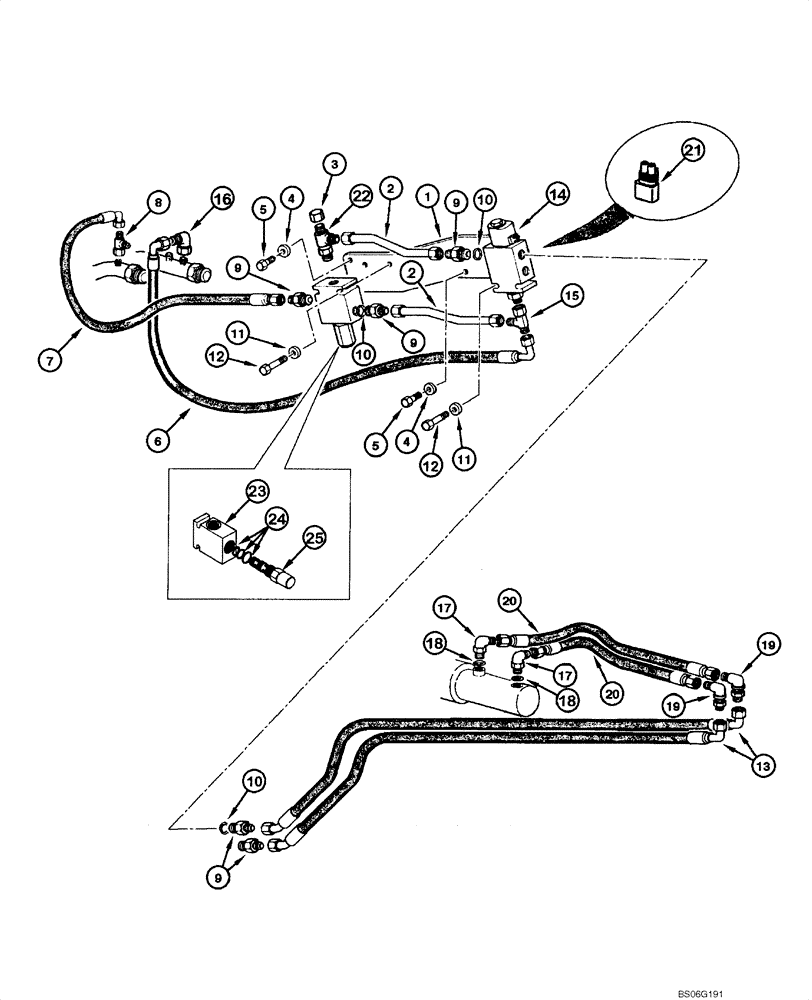

Запчасти Case 865 (08.11[00]) - BLADE HYDRAULIC CIRCUIT - LOCK (3 HOLES) (08) - HYDRAULICS

1

75280725

SUPPORT

1шт.

2

75248917

RIGID TUBE,6.5 mm ID, 9.5 mm OD, 140, 35 mm Length

2шт.

3

70919552

CAP

1шт.

4

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

5

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

2шт.

6

75252434

FLEXIBLE HOSE

1шт.

7

75252433

FLEXIBLE HOSE

1шт.

8

70921297

3 WAY CONNECTION

2шт.

9

70922522

HYD CONNECTOR

Incl. 10

4шт.

10

70921885

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

11

70928190

WASHER

2шт.

12

70930238

SCREW

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

13

75252380

FLEXIBLE HOSE

2шт.

14

73124881

HYDRAULIC VALVE

See Figure 08.65

1шт.

15

70921297

3 WAY CONNECTION

1шт.

16

70921013

ELBOW

1шт.

17

70923905

ELBOW

2шт.

18

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

19

70928378

ELBOW

2шт.

20

70659547

HYDRAULIC HOSE

2шт.

21

75322270

ELEC CONNECTOR

1шт.

22

70930806

3 WAY CONNECTION

1шт.

23

75323837

HYDRAULIC VALVE

Incl. 24

1шт.

24

75313876

SEAL KIT

1шт.

25

NSS

NOT SOLD SEPARAT

Valve

1шт.
