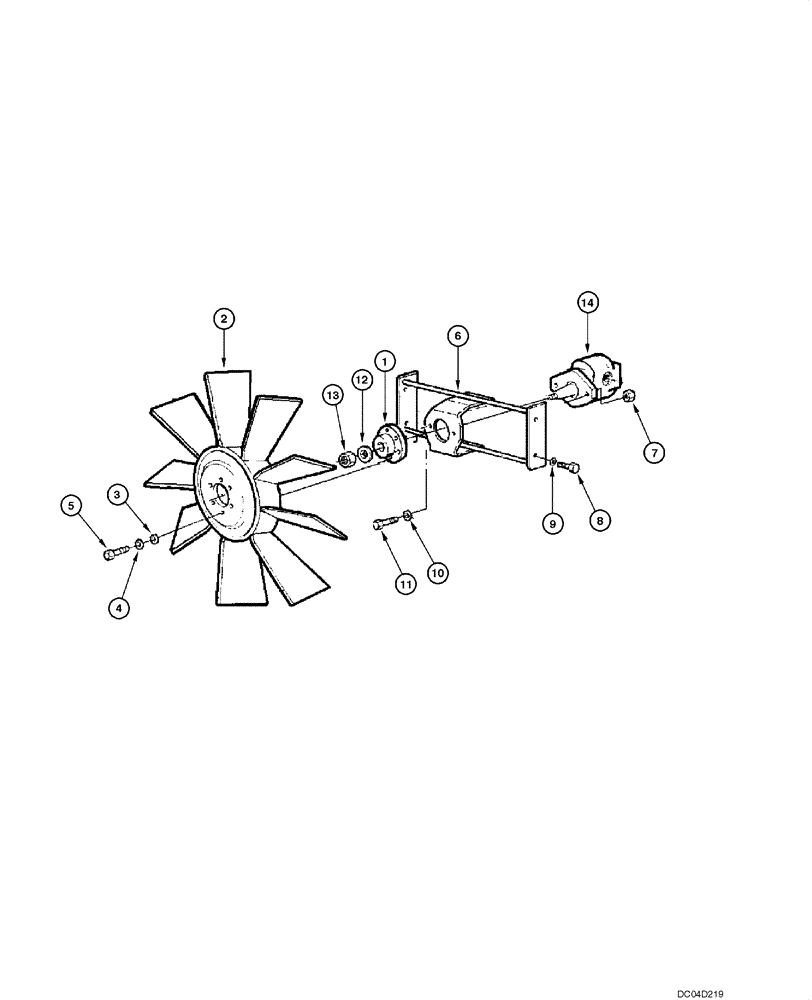

Запчасти Case 865 (02.03[00]) - FAN MOUNTING (02) - ENGINE

1

73162878

HUB

1шт.

1

87354991

HUB

For Optional Reverse Fan

1шт.

2

73164370

FAN

1шт.

3

70930370

WASHER,0.44" ID x 0.69" OD x 0.11" Thk

6шт.

4

70910287

LOCK WASHER

6шт.

5

70927400

BOLT

6шт.

6

75261040

SUPPORT

1шт.

7

12577221

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 10, ZND

2шт.

8

11106131

SCREW,Hex, M10 x 22mm, Cl 10.9, Full Thd

4шт.

9

12646821

WASHER,10.2mm ID x 25mm OD x 2mm Thk

4шт.

10

10517073

LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk

2шт.

11

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

12

70904208

LOCK WASHER

1шт.

13

70911043

NUT

1шт.

14

73162805

HYDRAULIC MOTOR,GEAR, 27 CC

See Figure 08.69

1шт.

14

73162805R

REMAN-HYD MOTOR

865 MOTOR GRADER TIER 2 - ASN 022101

1шт.

14

73162805C

CORE-MOTOR HYDRAULIC

Return Number

1шт.
