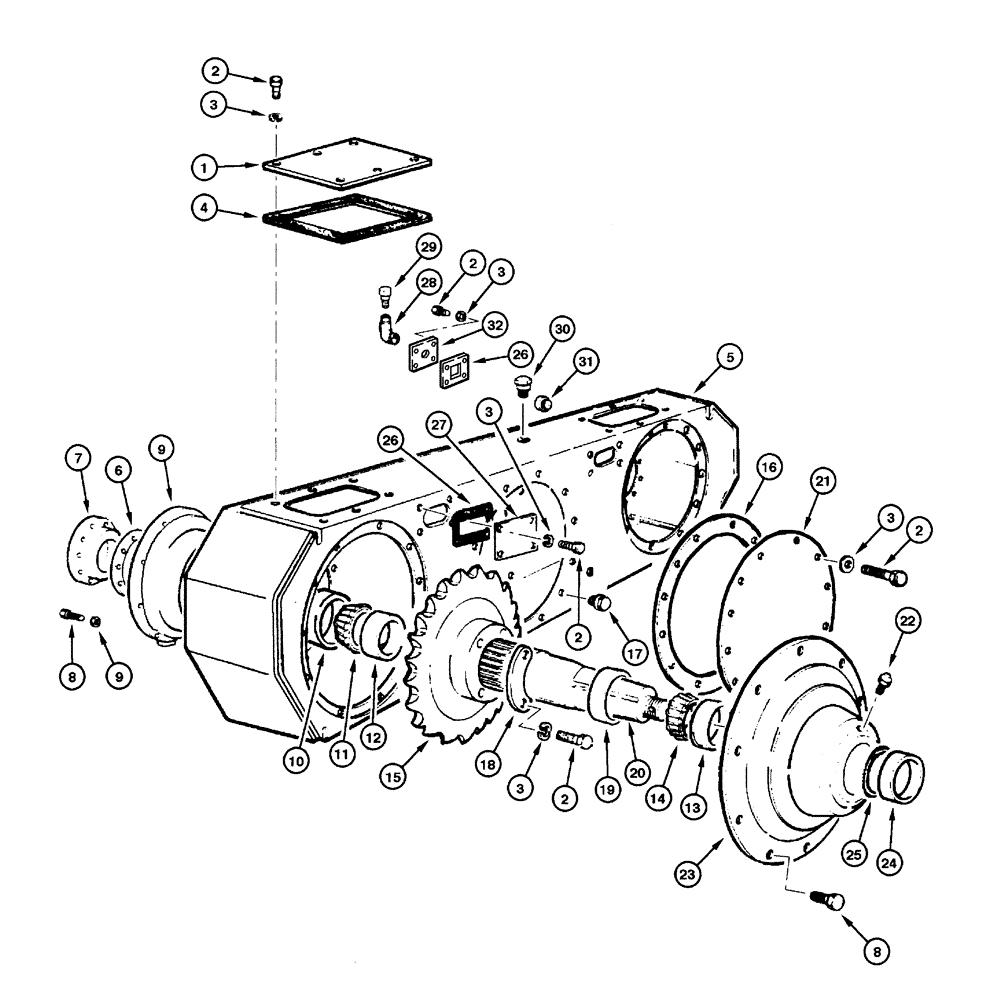

Запчасти Case 865 (06.37[00]) - TANDEM - WHEEL END (FOR GRAZIANO AXLE) (06) - POWER TRAIN

1

75257199

COVER

4шт.

2

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

48шт.

3

10516871

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

48шт.

4

75257200

GASKET,3mm Thk

4шт.

5

75249757

CASE

2шт.

6

70684813

SHIM

0,025mm

56шт.

6

70684814

SHIM,.005" Thk

8шт.

6

70684815

SHIM,.003" Thk

12шт.

7

75222181

PLATE

4шт.

8

11112631

BOLT,Hex, M12 x 35mm, Cl 10.9

60шт.

9

75249761

HUB

4шт.

70684817

BEARING ASSY

4шт.

10

70680631

BEARING CUP,122.24mm OD x 29.72mm W

4шт.

11

70684816

BEARING ASSY,2.625" ID x 1.51"

4шт.

12

70680615

SEAL,82.55mm ID x 154.94mm OD x 12.7mm Thk

4шт.

70681245

BEARING ASSY,85.03mm ID x 150.09mm OD x 44.4.5mm W

4шт.

13

70042877

BEARING CUP,150.09mm OD x 36.5mm W

4шт.

14

70051997

BEARING ASSY,85.03mm ID x 46.67mm W

4шт.

15

75249760

SPROCKET,27T

4шт.

16

73161784

GASKET,1.5mm Thk

2шт.

17

70912725

PLUG

4шт.

18

70653821

PLATE

4шт.

19

70653820

SEAL,95.89mm ID x 155.32mm OD x 2.03mm Thk

4шт.

20

75256823

SHAFT

4шт.

21

73161783

COVER

2шт.

22

70914465

LUBE NIPPLE

4шт.

23

75256828

COVER

4шт.

24

75256829

SEAL RETAINER

4шт.

25

11075376

LOCKING RING

4шт.

26

75257147

GASKET

6шт.

27

75257148

COVER

6шт.

28

70907059

HYD CONNECTOR

2шт.

29

70634161

BREATHER

2шт.

30

70912768

PLUG

2шт.

31

70901651

PLUG

6шт.

32

75257150

COVER

2шт.
