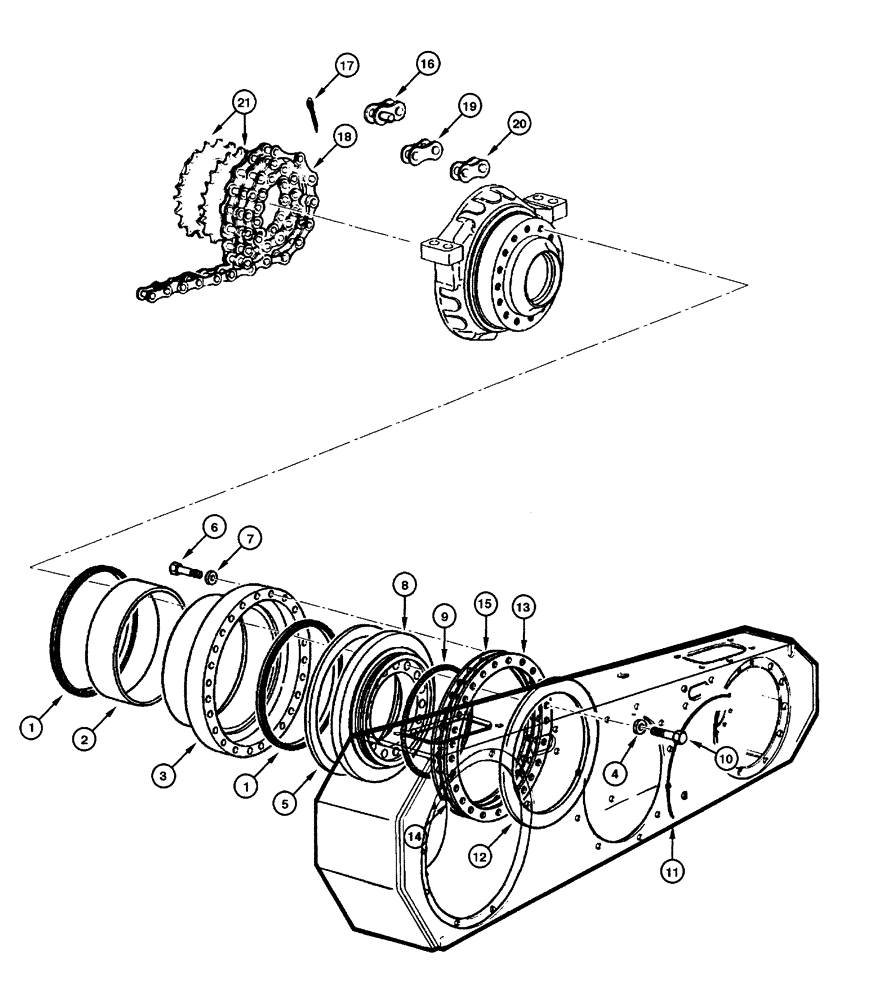

Запчасти Case 865 (06.36[00]) - TANDEM - INTERMEDIATE BEARING (06) - POWER TRAIN

1

73155118

SEAL

2шт.

2

75246450

BUSHING,350mm ID x 362.5mm OD x 80mm L

2шт.

3

73161776

HUB

2шт.

4

14497131

WASHER,21mm ID x 37mm OD x 3mm Thk

32шт.

5

75253782

RING,380mm ID x 440mm OD x 3mm Thk

2шт.

6

15981231

BOLT,Hex, M16 x 1.5 x 65mm, Cl 10.9

48шт.

7

10517271

LOCK WASHER,16.2mm ID x 27.7mm OD x 4mm Thk

48шт.

8

75256881

COVER

2шт.

9

70925482

O-RING,0.139" Thk x 10.984" ID, -276, Cl 5, 75 Duro

2шт.

10

73161800

BOLT,Hex, M20 x 1.5 x 70mm, Cl 10.9

32шт.

11

70052519

WIRE

2шт.

12

73155650

RING,363mm ID x 440mm OD x 3mm Thk

4шт.

13

73155087

SHIM,0.508mm Thk

14шт.

14

73155086

SHIM,0.127mm Thk

4шт.

15

73155085

SHIM,0.1778mm Thk

4шт.

16

70605508

LINK,50.8mm Pitch

1шт.

17

73151154

COTTER PIN

1шт.

18

75241029

CHAIN

ASSY; Incl. Ref 16, 17, 19, 20

4шт.

19

70605507

LINK,50.8mm Pitch

Offset Link

1шт.

20

70605578

LINK,Chain, 50.8mm Pitch

Roller Link

1шт.

21

75289029

GEAR

4шт.
