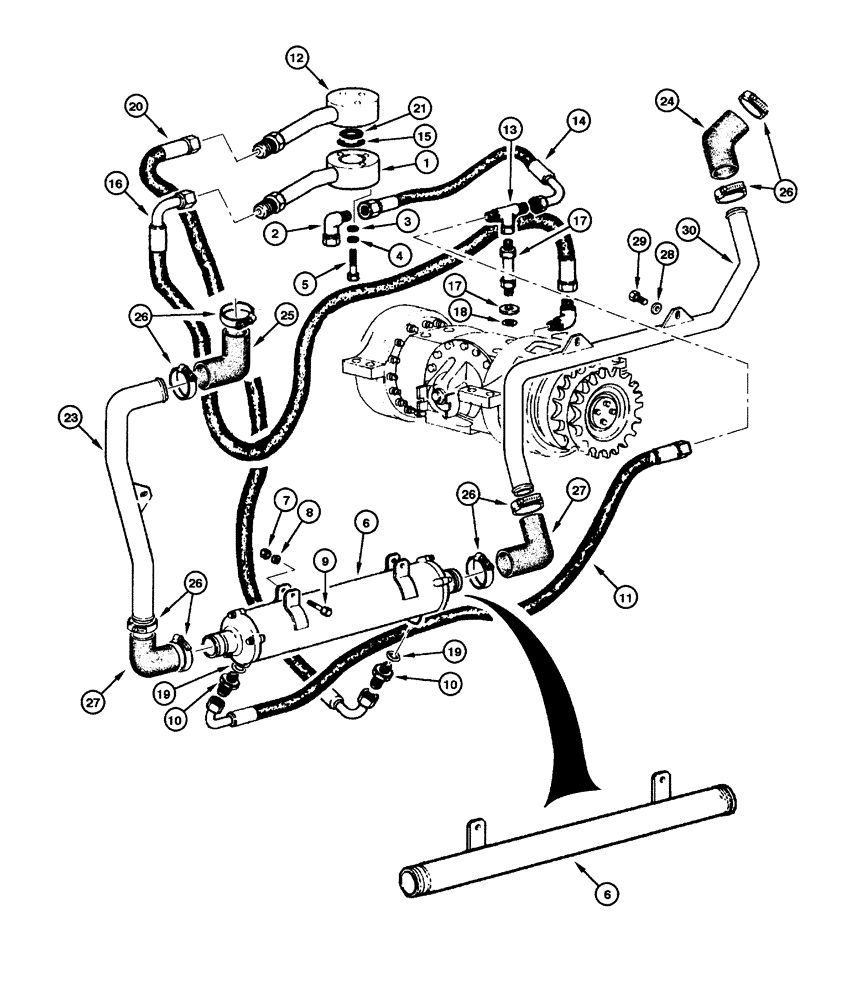

Запчасти Case 865 (06.35[00]) - REAR AXLE CLARK - OIL COOLING (06) - POWER TRAIN

1

75252530

FLANGE

1шт.

2

70921279

ELBOW

1шт.

3

14496431

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

3шт.

4

10516479

LOCK WASHER

3шт.

5

10903030

BOLT,Hex, M6 x 35mm, Cl 10.9

3шт.

6

75257700

OIL COOLER

Graziano

1шт.

6

75257806

RIGID TUBE,47 mm ID, 50 mm OD, 795 mm Length

Clark

1шт.

7

12577221

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 10, ZND

2шт.

8

10516879

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

2шт.

9

11107631

SCREW,Hex, M10 x 70mm, Cl 10.9

2шт.

10

75252993

HYD CONNECTOR

2шт.

11

75252543

FLEXIBLE HOSE

1шт.

12

75253556

TUBE

1шт.

13

70921276

HYD CONNECTOR

1шт.

14

75252544

FLEXIBLE HOSE

1шт.

15

14457680

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

16

75252540

FLEXIBLE HOSE

1шт.

17

75253076

HYD CONNECTOR

1шт.

18

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

19

73136636

COPPER WASHER,26.3mm ID x 38mm OD x 5mm Thk

2шт.

20

75252541

FLEXIBLE HOSE

1шт.

21

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

22

70921203

HYD CONNECTOR

1шт.

23

73163941

TUBE

1шт.

24

73158847

ELBOW,38.1mm ID x 152mm L, SAE 20R4-D2

1шт.

25

75249382

HOSE,51.00 mm ID x 85.00 mm, SAE 20R4 D1

1шт.

26

70921913

HOSE CLIP

7шт.

27

75221770

ELBOW,51mm ID x 85mm L, SAE 20

2шт.

28

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

3шт.

29

16043431

SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

3шт.

30

75257785

TUBE

1шт.
