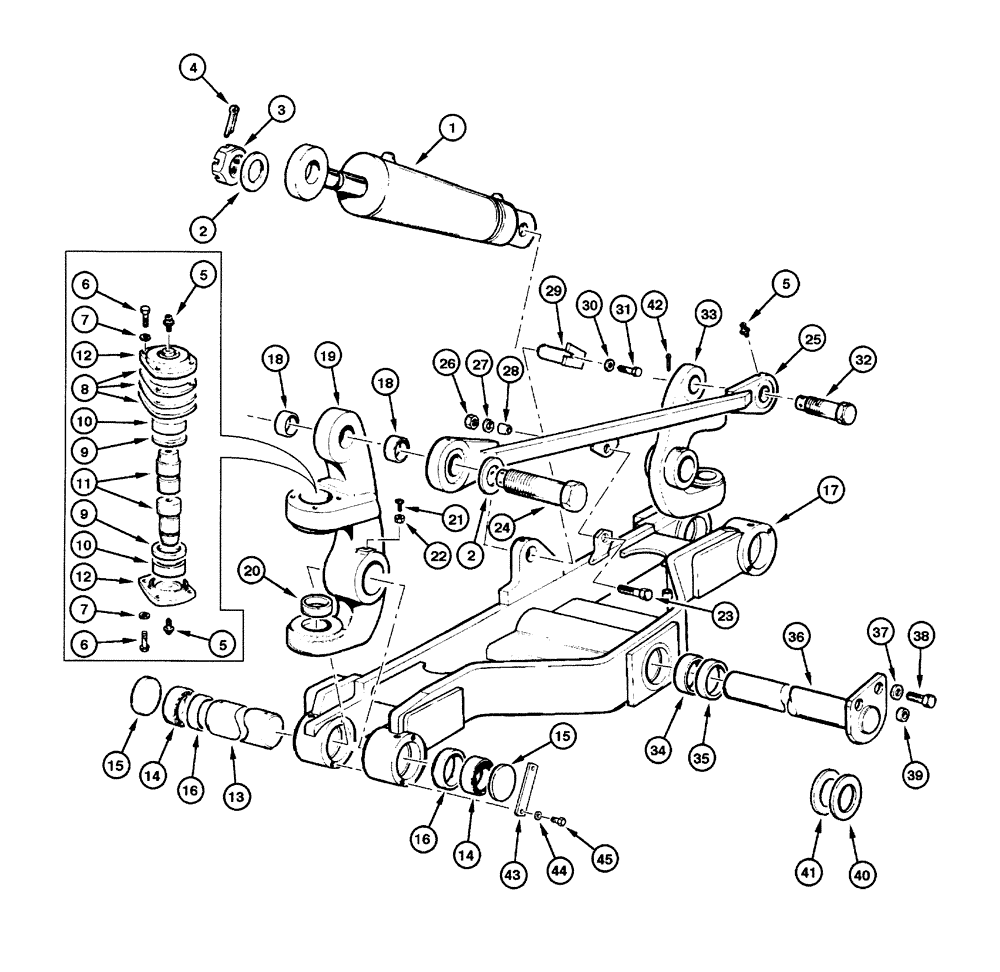

Запчасти Case 865 (06.22[00]) - FRONT AXLE - ASSEMBLY (06) - POWER TRAIN

1

75220689

CYLINDER

See Figure 8.54

1шт.

1

75266919R

REMAN-HYD CYLINDER

865 MOTOR GRADER ASN 022001, Reman for New PN 75220689

1шт.

1

75266919C

CORE-HYD CYLINDER

Return Number

1шт.

2

70054889

WASHER,33.34mm ID x 76.2mm OD x 6.35mm Thk

2шт.

3

70911061

SLOTTED NUT

2шт.

4

70901344

COTTER PIN,1/4" x 2"

1шт.

5

70914465

LUBE NIPPLE

10шт.

6

70921076

SCREW,3/8"-16 x 1 1/4"

16шт.

7

70929156

WASHER,0.41" ID x 0.81" OD x 0.06" Thk

16шт.

8

73124681

SHIM,73.66mm ID x 82.56mm OD x 0.13mm Thk

10шт.

8

73124682

SHIM,73.66mm ID x 82.56mm OD x 0.18mm Thk

10шт.

8

73124683

SHIM,.020" Thk

10шт.

9

73124678

TAPERED BEARING,34.92mm ID x 72.23mm OD x 25.4mm W

4шт.

10

73124671

SEAL

4шт.

11

73124680

PIN,44.4mm OD x 101.6mm L

4шт.

12

73124522

COVER

4шт.

13

75238951

PIN,50.8mm OD x 234mm L

2шт.

14

73124679

NEEDLE BEARING,Needle, 50.8mm ID x 60.33mm OD x 44.45mm W

4шт.

15

70930423

PLUG

4шт.

16

73124672

SEAL

4шт.

17

73162371

SHAFT

1шт.

18

70668028

SPHERICAL BEARING,31.74mm ID x 50.8mm OD x 27.76mm W

6шт.

19

73124520

ARTICULATION

1шт.

20

73125713

SEALING RING

2шт.

21

73125712

SET SCREW

2шт.

22

70913830

NUT

2шт.

23

70922544

SCREW

1шт.

24

70683838

SCREW,Hex, 1-1/4" - 7 x 5-1/4", Gr 8

1шт.

25

73125722

TOP LINK

1шт.

26

70911030

NUT

1шт.

27

70914726

LOCK WASHER

1шт.

28

73125726

SPACER,19.05mm ID x 26.67mm OD x 3.81mm L

4шт.

29

70673051

PIN

1шт.

30

70677006

WASHER,10.31mm ID x 22.23mm OD x 4.76mm Thk

1шт.

31

70922763

SCREW

1шт.

32

70683837

BOLT,Hex, 1-1/4" - 7 x 4.22"

1шт.

33

73124519

ARTICULATION

1шт.

34

75221259

SPACER

2шт.

35

75221258

SPACER,50.88mm ID x 60.38mm OD x 57mm L

2шт.

36

75249866

SHAFT

1шт.

37

70930850

WASHER,0.53" ID x 1.5" OD x 0.25" Thk

2шт.

38

70920585

BOLT

2шт.

39

73153515

SPACER,13mm ID x 25.4mm OD x 14.5mm L

2шт.

40

73135173

WASHER,52.32mm ID x 101.6mm OD x 1.52mm Thk

1шт.

41

73135174

WASHER,52.32mm ID x 101.6mm OD x 3.42mm Thk

1шт.

42

70901345

COTTER PIN,1/4" x 2 1/2"

1шт.

43

75238952

PLATE

4шт.

44

10516471

LOCK WASHER

8шт.

45

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

8шт.
