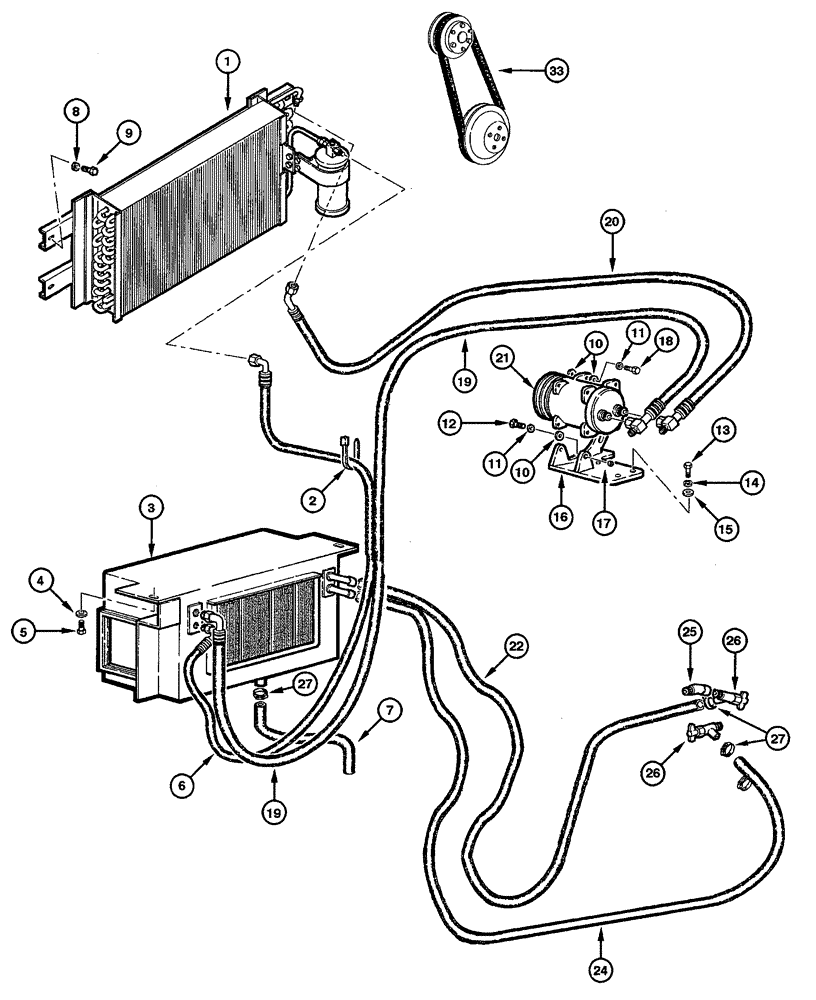

Запчасти Case 865 (09.37[00]) - AIR CONDITIONING - CIRCUIT AND ASSEMBLY (09) - CHASSIS

1

75257962

CONDENSER

1шт.

2

13000990

COLLAR,60mm - 80mm, Worm Gear

2шт.

3

75254533

CONDENSER

1шт.

4

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

5

16043431

SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

6

75257956

HOSE

1шт.

7

75255010

HOSE

1шт.

8

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

8шт.

9

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

8шт.

10

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

11

10516879

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

3шт.

12

11343831

SCREW,Hex, M10 x 1.25 x 50mm, Cl 10.9

2шт.

13

11106631

SCREW,Hex, M10 x 35mm, Cl 10.9, Full Thd

3шт.

14

10516879

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

3шт.

15

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

3шт.

16

75252178

SUPPORT

1шт.

17

79114762

BUSHING,10.5mm ID x 16mm OD x 15mm L

1шт.

18

11343831

SCREW,Hex, M10 x 1.25 x 50mm, Cl 10.9

1шт.

19

75257954

HYDRAULIC HOSE

1шт.

20

75257955

HYDRAULIC HOSE

1шт.

21

75251988

AIRCOND. COMPRESSOR

1шт.

21

75251988R

REMAN-A/C COMPRESSOR

865 MOTOR GRADER ASN 022001

1шт.

21

75251988C

CORE-A/C COMPRESSOR

Return Number

1шт.

22

75320969

HEATER HOSE,16.00 mm ID x 2020.00 mm

1шт.

23

75250835

BELT

1шт.

24

75320978

HOSE,15.88mm ID x 2700mm L

1шт.

25

70910149

ELBOW

1шт.

26

70089894

DRAINCOCK/TAP SUPPLY

2шт.

27

195473C1

CLAMP

9шт.

33

75256773

BELT,13.00 mm W x 1150.00 mm L

1шт.
