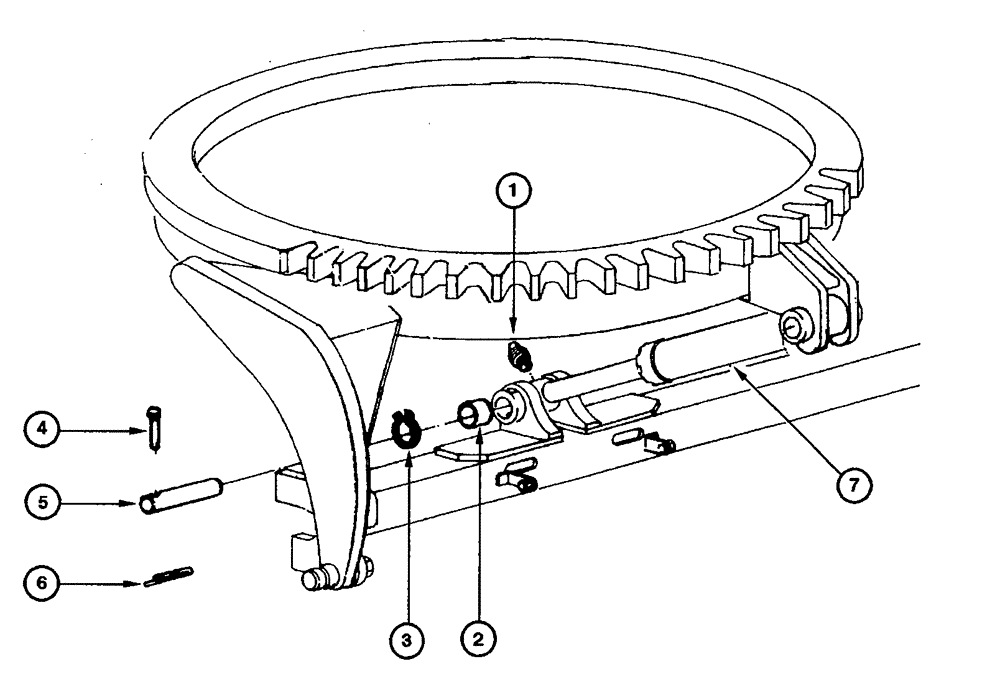

Запчасти Case 865 (09.12[00]) - BLADE - TILT MECHANISM (09) - CHASSIS

1

70914465

LUBE NIPPLE

2шт.

2

70928851

BEARING ASSY

2шт.

3

11061076

SNAP RING,M62, Int

4шт.

4

75213766

PIN,10.71mm OD x 88mm L

2шт.

5

75213765

PIN,38.08mm OD x 181mm L

2шт.

6

70900805

COTTER PIN,1/8" x 3/4"

2шт.

7

75251459

CYLINDER

RH

1шт.

7

75252455

CYLINDER,Double Acting, 56mm Rod, 1143mm Stroke

LH

1шт.

7

75252455R

REMAN-HYD CYLINDER

865 MOTOR GRADER ASN 022001, LH

1шт.

7

75252455C

CORE-HYD CYLINDER

Return Number

1шт.
