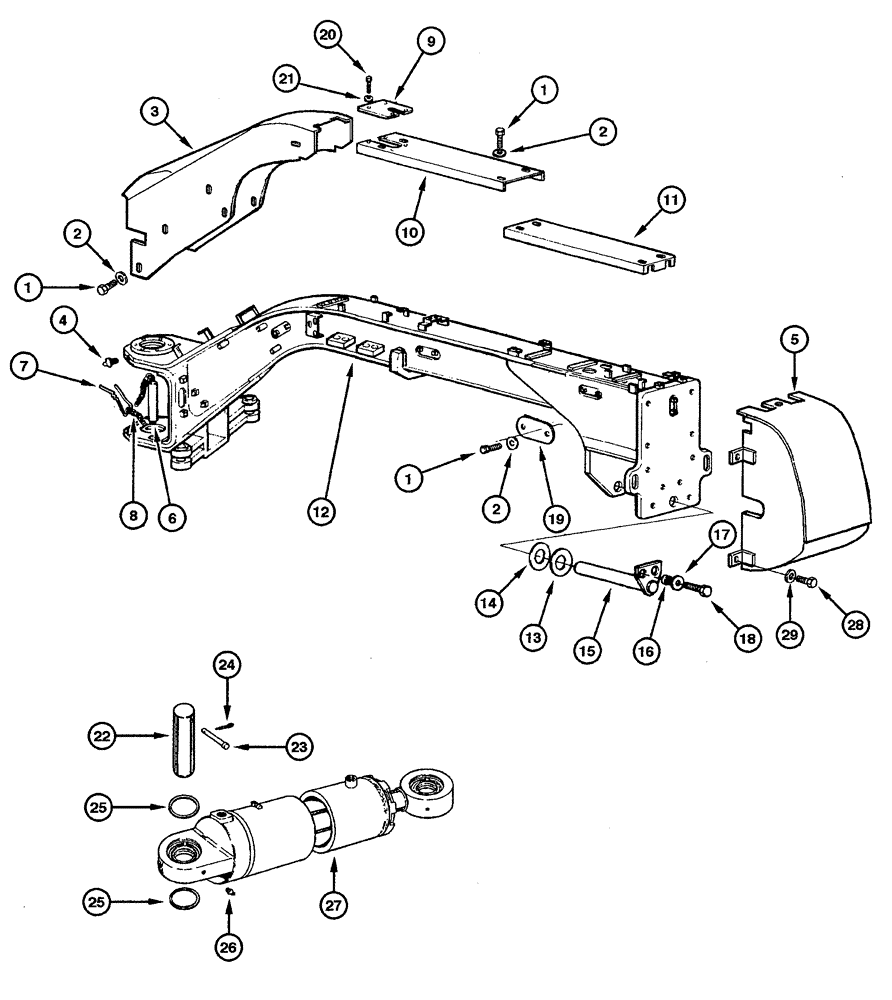

Запчасти Case 865 (09.01[00]) - FRONT CHASSIS (09) - CHASSIS

1

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

26шт.

2

10519621

WASHER,8.15mm ID x 17mm OD x 2mm Thk

26шт.

3

73164034

GUARD

1шт.

4

13407811

LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm

2шт.

5

73164000

GUARD

FRONT

1шт.

6

75281140

PIN

2шт.

7

8268534

ROLL PIN,7mm OD

2шт.

8

4955502

CHAIN

2шт.

9

73164010

MOUNTING PLATE

1шт.

10

73164013

GUARD

1шт.

11

73164007

GUARD

1шт.

12

75257295

CHASSIS

FRONT

1шт.

13

73135173

WASHER,52.32mm ID x 101.6mm OD x 1.52mm Thk

1шт.

14

73135174

WASHER,52.32mm ID x 101.6mm OD x 3.42mm Thk

1шт.

15

75249866

SHAFT

1шт.

16

73153515

SPACER,13mm ID x 25.4mm OD x 14.5mm L

2шт.

17

70930850

WASHER,0.53" ID x 1.5" OD x 0.25" Thk

2шт.

18

11113231

BOLT,Hex, M12 x 50mm, Cl 10.9

2шт.

19

75280721

COVER

3шт.

20

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

4шт.

21

10519621

WASHER,8.15mm ID x 17mm OD x 2mm Thk

4шт.

22

75213765

PIN,38.08mm OD x 181mm L

4шт.

23

75213766

PIN,10.71mm OD x 88mm L

4шт.

24

70900805

COTTER PIN,1/8" x 3/4"

4шт.

25

75213767

SHIM

1шт.

26

70914465

LUBE NIPPLE

4шт.

27

73124588

OPERATING CYLINDER

RH

1шт.

27

73124575

CYLINDER,Double Acting, 31.75mm Rod, 57.15mm Stroke

LH

1шт.

28

70922475

BOLT

1шт.

29

70677012

WASHER,20.64mm ID x 44.45mm OD x 7.94mm Thk

1шт.
