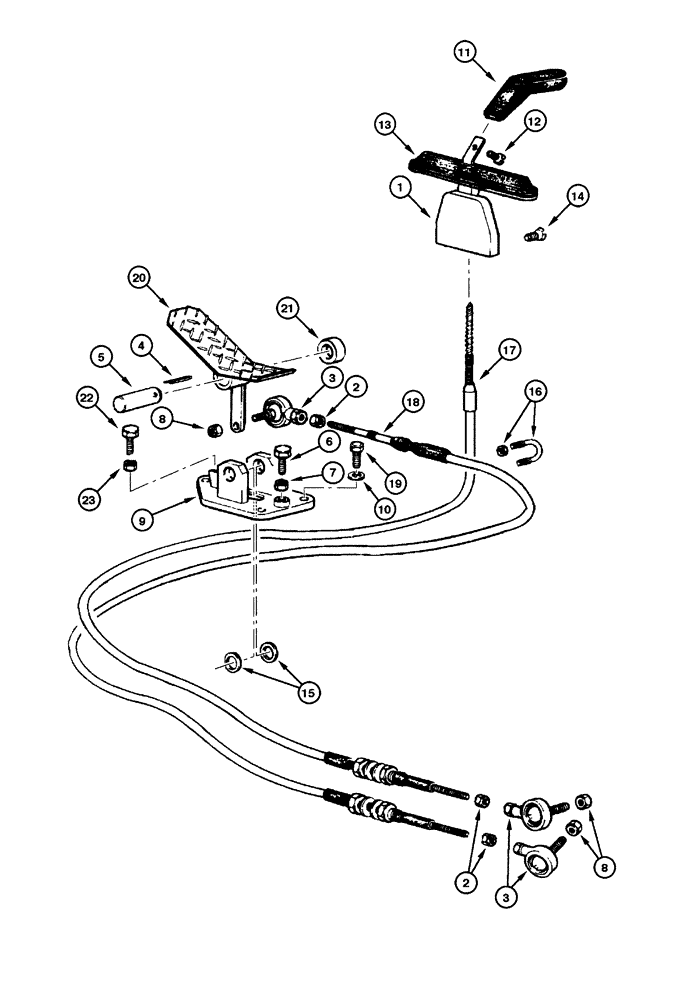

Запчасти Case 865 (03.01[00]) - THROTTLE AND LINKS (03) - FUEL SYSTEM

1

85802905

LEVER

1шт.

2

70911040

NUT

3шт.

3

70686384

BALL JOINT,1/4" - 28 x 1-1/3"

3шт.

4

70904002

COTTER PIN,1/8" x 2"

1шт.

5

73162359

AXLE,19.05mm OD x 64mm L

1шт.

6

11112431

SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd

1шт.

7

11702921

NUT,M12, Cl 10

1шт.

8

70916590

NUT

3шт.

9

75249975

SUPPORT

1шт.

10

14496431

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

3шт.

11

82002692

KNOB

1шт.

12

13275811

SCREW,Phil Pan Hd, M6 x 8mm

1шт.

13

85803380

BOOT

1шт.

14

10384511

SCREW,Slotted Countersunk, M5 x 30mm

4шт.

15

73121925

THRUST WASHER,19.05mm ID x 31.75mm OD x 0.81mm Thk

2шт.

16

75244191

CLAMP

1шт.

17

75251274

THROTTLE CONTROL

1шт.

18

75251275

THROTTLE CONTROL

1шт.

19

10903031

BOLT,Hex, M6 x 35mm, Cl 10.9

3шт.

20

75256466

PEDAL

1шт.

21

73125852

NEEDLE BEARING

2шт.

22

16043831

SCREW,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

23

16100821

NUT,M8, Cl 10

1шт.
