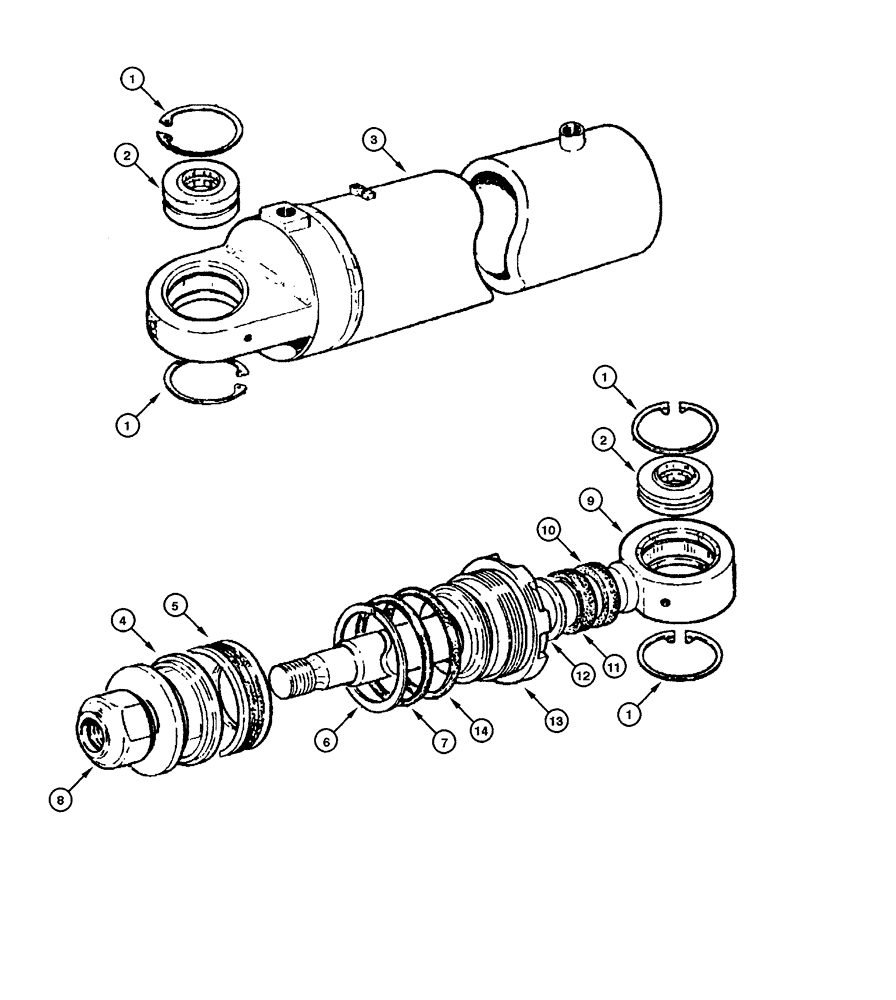

Запчасти Case 865 (08.61[00]) - CYLINDER - LINK LH/RH (08) - HYDRAULICS

75213774

CYLINDER,Double Acting, 31mm Rod, 377mm Stroke

link RH assy.

1шт.

75213774R

REMAN-HYD CYLINDER

865 MOTOR GRADER ASN 022001, link RH assy.

1шт.

75213774C

CORE-HYD CYLINDER

Return Number

1шт.

75213779

CYLINDER,Double Acting, 31mm Rod, 377mm Stroke

link LH assy.

1шт.

75213779R

REMAN-HYD CYLINDER

865 MOTOR GRADER ASN 022001, link LH assy.

1шт.

75213779C

CORE-HYD CYLINDER

Return Number

1шт.

1

11061076

SNAP RING,M62, Int

4шт.

2

70928851

BEARING ASSY

2шт.

3

75213542

LINER, ENGINE CYLIND,585 mm Length

RH

1шт.

3

75213543

LINER, ENGINE CYLIND,585 mm Length

LH

1шт.

4

79038730

PISTON

1шт.

5

8291506

SEALING RING

SEALRING

1шт.

6

8297295

RING,73.8mm ID x 80mm OD x 1.5mm Thk

1шт.

7

14465180

O-RING,72.62mm ID x 3.53mm Width

1шт.

8

8281325

NUT

1шт.

9

75213768

ROD,45mm OD x 533mm L

1шт.

10

8288822

SEAL

1шт.

11

8297294

GASKET

1шт.

12

8297296

RING

1шт.

13

75220934

BASE PLATE

1шт.

14

14465480

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

1шт.

75209587

SEAL

(NOTE)

1шт.
