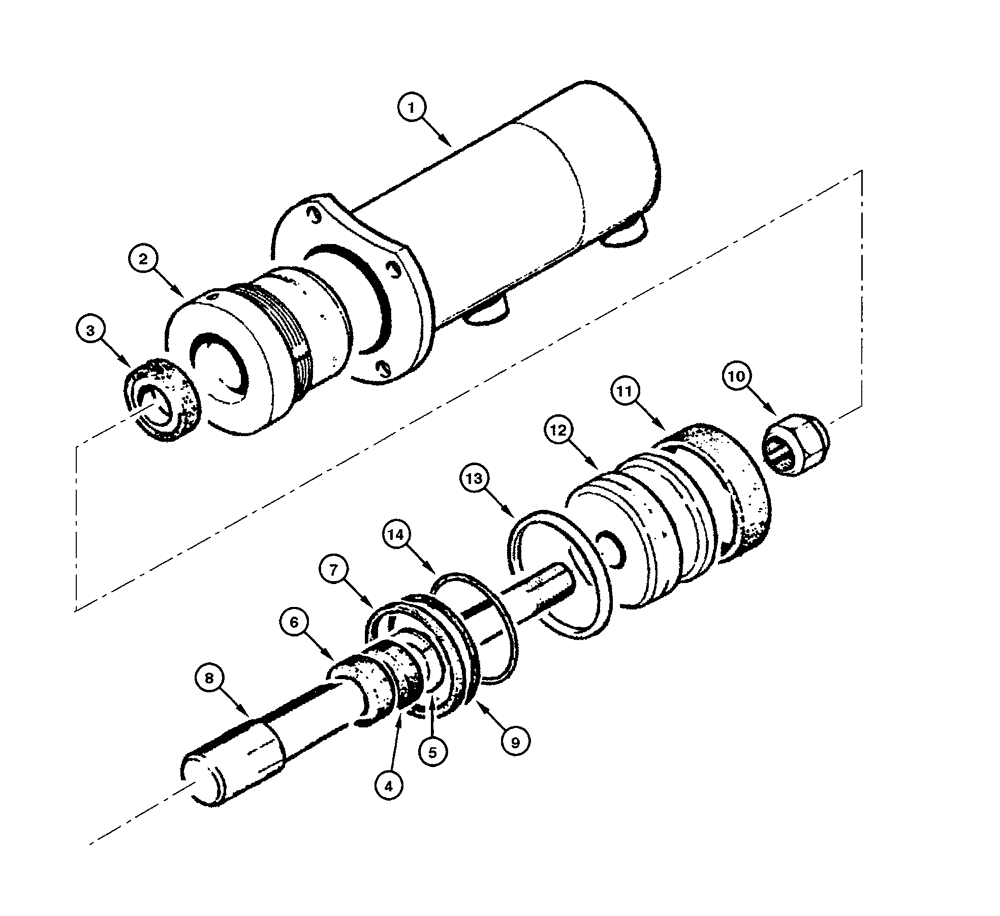

Запчасти Case 865 (08.60[00]) - CYLINDER - SADDLE LOCK LH/RH (08) - HYDRAULICS

73124588

OPERATING CYLINDER

saddle RH

1шт.

73124575

CYLINDER,Double Acting, 31.75mm Rod, 57.15mm Stroke

saddle LH

1шт.

1

73124573

CYLINDER,66.3mm Bore Dia

liner RH

1шт.

1

73124577

CYLINDER,63.76mm Bore Dia

liner LH

1шт.

73065286

PISTON SWIVEL HEAD

SWIVEL HEAD PISTON

1шт.

2

73065285

BASE PLATE

1шт.

3

73055116

RUBBER RING

1шт.

4

73063066

BUSHING

1шт.

5

70927699

LOCKING RING

1шт.

6

73070372

SEAL,31.75mm ID x 44.45mm OD x 9.53mm Thk

1шт.

7

73063363

RING

1шт.

8

75236893

ROD,44.45mm OD x 333.25mm L

1шт.

9

70924158

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

10

73073273

LOCK NUT

1шт.

11

73058667

RING,Locking, 57.18mm ID x 63.63mm OD x 25.4mm Thk

1шт.

12

73058668

PISTON

1шт.

13

73058666

RING,60.81mm ID x 64.52mm OD x 3.07mm Thk

1шт.

14

70928874

RING,55.55mm ID x 60.33mm OD x 2.37mm Thk

1шт.

73064517

REPAIR KIT

(NOTE)

1шт.
