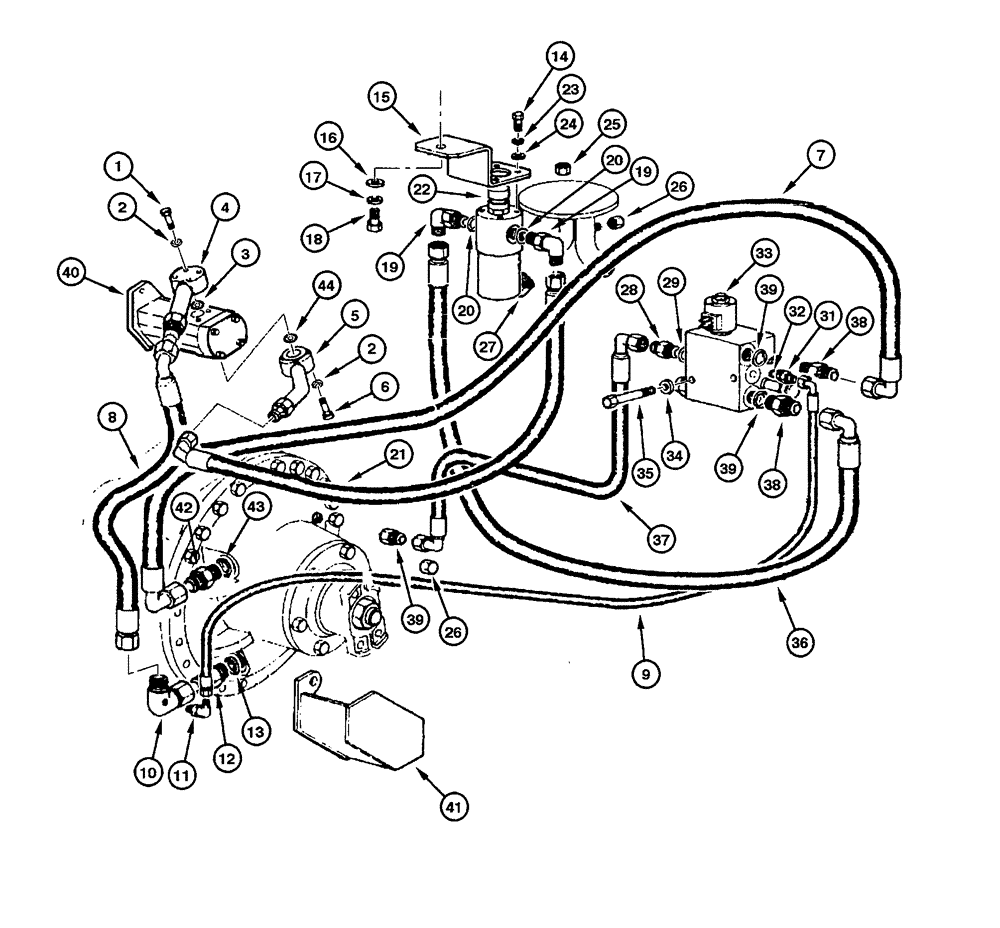

Запчасти Case 865 (08.38[00]) - DIFFERENTIAL LOCK - CIRCUIT (08) - HYDRAULICS

1

10903031

BOLT,Hex, M6 x 35mm, Cl 10.9

3шт.

2

14496431

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

6шт.

3

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

4

75253556

TUBE

1шт.

5

75252532

RIGID TUBE

1шт.

6

10903431

BOLT,Hex, M6 x 45mm, Cl 10.9

3шт.

7

75251186

FLEXIBLE HOSE

1шт.

8

75253069

FLEXIBLE HOSE

1шт.

9

75254415

FLEXIBLE HOSE

1шт.

10

75254413

HYD CONNECTOR

1шт.

11

70919173

ELBOW

1шт.

12

70921217

HYD CONNECTOR

1шт.

13

70921206

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

14

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

4шт.

15

75254412

BRACKET

1шт.

16

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

17

10516871

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

1шт.

18

11103031

BOLT,Hex, M10 x 18, 10.9, Full Thd

1шт.

19

79067020

ELBOW

2шт.

20

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

21

75252543

FLEXIBLE HOSE

1шт.

22

149940A1

FILTER ASSY

1шт.

23

10516471

LOCK WASHER

4шт.

24

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

4шт.

25

70923737

PLUG

1шт.

26

70921467

PLUG

2шт.

27

70921244

PLUG

1шт.

28

70921409

HYD CONNECTOR

2шт.

29

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

30

75252388

HYD CONNECTOR

1шт.

31

70923163

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

1шт.

32

70921883

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

1шт.

33

73161793

SOLENOID VALVE

1шт.

34

10519621

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

35

16045021

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

2шт.

36

75251155

FLEXIBLE HOSE

1шт.

37

75251162

FLEXIBLE HOSE

1шт.

38

70923717

HYD CONNECTOR

2шт.

39

70921205

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

1шт.

40

75252143

HYDRAULIC PUMP,90.29 CC

1шт.

41

75254440

GUARD

1шт.

42

70924296

GEAR REDUCTION UNIT

1шт.

43

70921205

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

1шт.

44

14457680

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.
