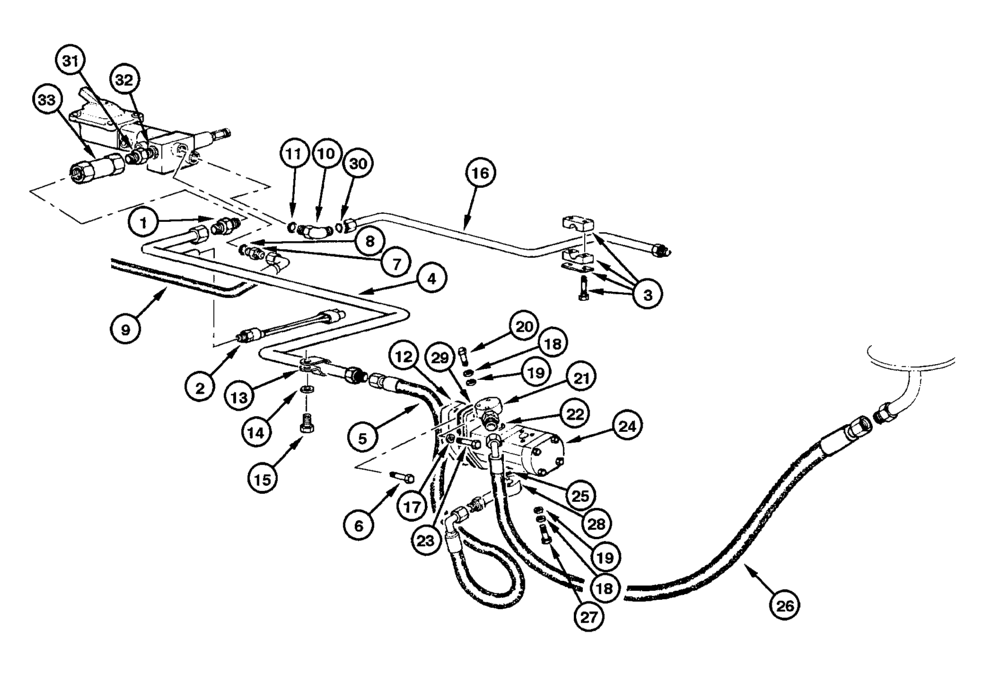

Запчасти Case 865 (08.35[00]) - BRAKE AND STEERING - HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

70921030

HYD CONNECTOR

1шт.

2

79102096

PRESSURE SWITCH

1шт.

3

75250900

CLAMP

2шт.

4

75254581

RIGID TUBE

1шт.

5

75253070

FLEXIBLE HOSE

1шт.

6

70917733

SCREW

2шт.

7

78100094

FITTING,M18 x 1.5

1шт.

8

70923841

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

9

75252442

RIGID TUBE

1шт.

10

78100129

HYD CONNECTOR

1шт.

11

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

12

75250823

SPACER

1шт.

13

70925617

CLAMP

2шт.

14

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

2шт.

15

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

2шт.

16

75252443

RIGID TUBE,9.7 mm ID, 12.7 mm OD, 900, 132.5 mm Length

1шт.

17

10516871

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

2шт.

18

10516471

LOCK WASHER

6шт.

19

14496431

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

6шт.

20

10903431

BOLT,Hex, M6 x 45mm, Cl 10.9

3шт.

21

75252527

TUBE

1шт.

22

14457680

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

23

14420131

HEX SOC SCREW,M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

24

75252143

HYDRAULIC PUMP,90.29 CC

1шт.

25

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

26

75253069

FLEXIBLE HOSE

1шт.

27

10903031

BOLT,Hex, M6 x 35mm, Cl 10.9

3шт.

28

75252534

TUBE

1шт.

29

70188771

GASKET,0.79mm Thk

2шт.

30

70923841

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

31

75254584

HYD CONNECTOR

1шт.

32

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

33

75216234

HYDRAULIC VALVE

1шт.
