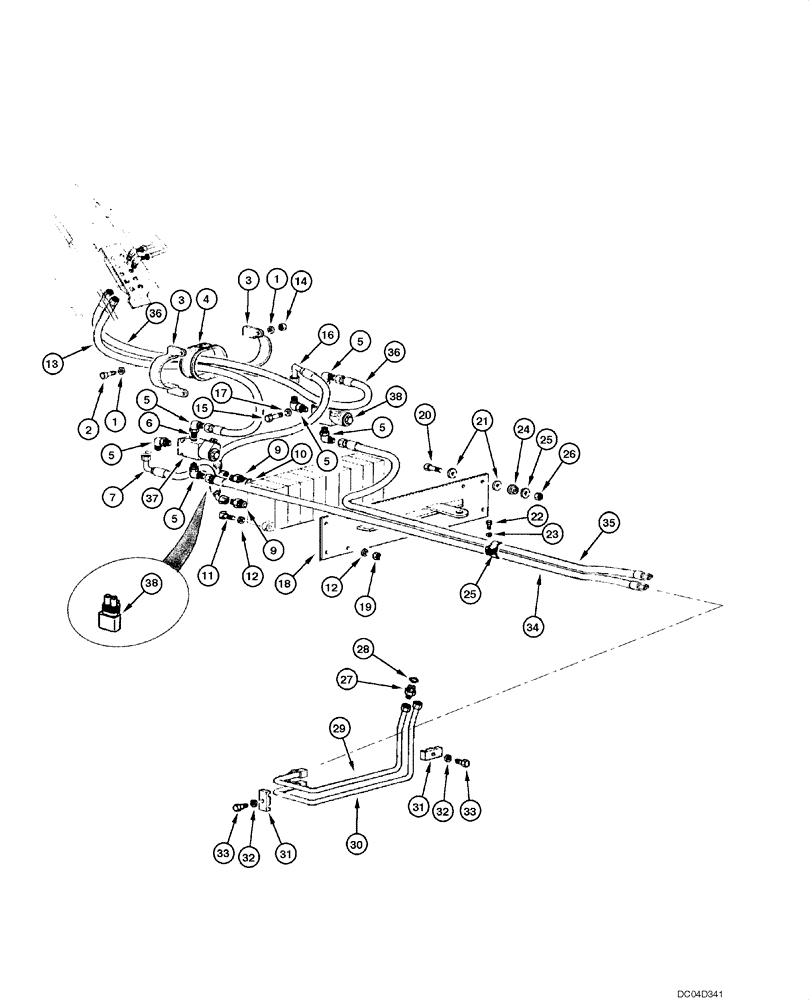

Запчасти Case 865 (08.27[00]) - SCARIFIER AND RIPPER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

10519621

WASHER,8.15mm ID x 17mm OD x 2mm Thk

4шт.

2

16044031

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

3

75250315

CLAMP

2шт.

4

75252375

GUARD

1шт.

5

70922523

ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

6шт.

6

70921885

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

7

75251175

FLEXIBLE HOSE

1шт.

9

70922522

HYD CONNECTOR

2шт.

10

70921885

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

70921565

SCREW

4шт.

12

70630753

WASHER

8шт.

13

75252830

FLEXIBLE HOSE

1шт.

14

14094910

NUT,Weld, M8

2шт.

15

10903931

BOLT

4шт.

16

75251176

FLEXIBLE HOSE

1шт.

17

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

4шт.

18

73162730

PLATE

1шт.

19

70911026

NUT

4шт.

20

11107031

BOLT,Hex, M10 x 45mm, Cl 10.9

4шт.

21

12644324

WASHER,10.2mm ID x 35mm OD x 3mm Thk

9шт.

22

70927400

BOLT

1шт.

23

70915815

WASHER

1шт.

24

75249628

WASHER

4шт.

25

70929872

CLAMP

1шт.

26

11701721

NUT,M10, Cl 10

3шт.

27

70921409

HYD CONNECTOR

1шт.

28

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

29

75320729

TUBE

1шт.

30

75320731

TUBE

1шт.

31

70623355

COLLAR

2шт.

32

70921076

SCREW,3/8"-16 x 1 1/4"

2шт.

33

70677006

WASHER,10.31mm ID x 22.23mm OD x 4.76mm Thk

2шт.

34

75252831

FLEXIBLE HOSE

1шт.

35

75251180

FLEXIBLE HOSE

1шт.

36

75251177

FLEXIBLE HOSE

1шт.

37

75255849

HYDRAULIC VALVE

2шт.

38

75322270

ELEC CONNECTOR

VARISTOR

4шт.
