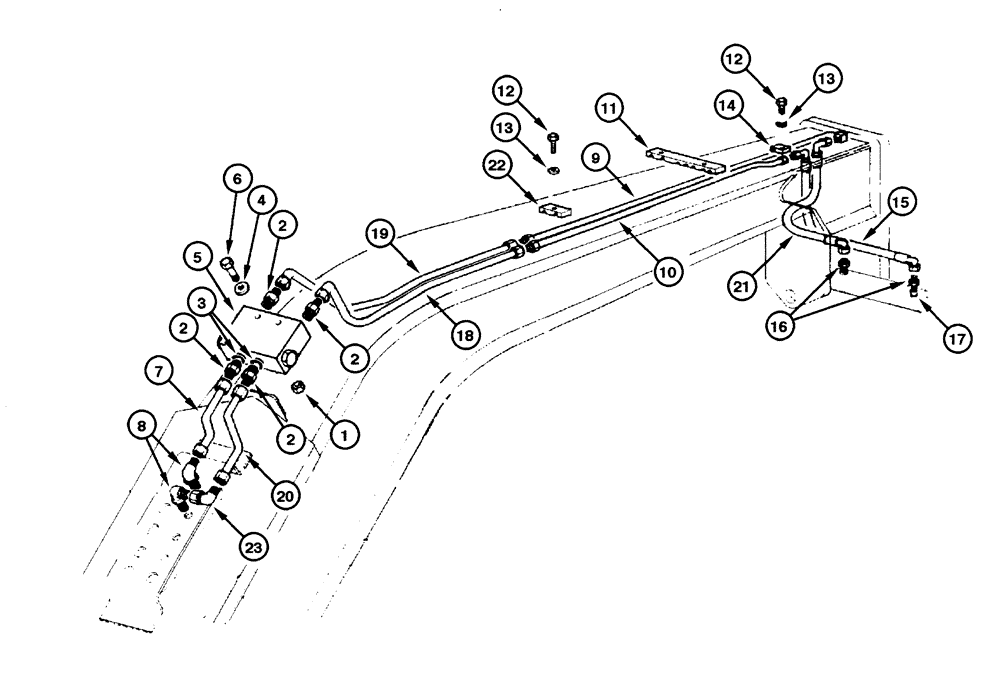

Запчасти Case 865 (08.22[00]) - FRONT AXLE HYDRAULIC CIRCUIT - TILT (08) - HYDRAULICS

1

70920329

NUT

2шт.

2

70922457

HYD CONNECTOR

4шт.

3

70921885

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

70928190

WASHER

4шт.

5

75252292

HYDRAULIC VALVE

Includes (2) 75310457 Valve, Which Includes 75289866 Seal Kit

1шт.

75310457

VALVE

Includes 75289866 Seal Kit

2шт.

75289866

SEAL KIT

1шт.

6

70930238

SCREW

2шт.

7

75248917

RIGID TUBE,6.5 mm ID, 9.5 mm OD, 140, 35 mm Length

1шт.

8

70928378

ELBOW

2шт.

9

75248925

RIGID TUBE,9.5 mm OD, 2618, 40 mm Length

1шт.

10

75248921

RIGID TUBE,9.5 mm OD, 2529, 29 mm Length

1шт.

11

75250315

CLAMP

1шт.

12

16044331

SCREW,Hex, M8 x 1.25 x 55mm, Cl 10.9

1шт.

13

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

14

73127629

CLAMP

1шт.

15

75255793

HOSE,9.5mm ID x 1215mm L, SAE 100R2

1шт.

16

70922457

HYD CONNECTOR

2шт.

17

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

18

75248994

RIGID TUBE

1шт.

19

75248924

RIGID TUBE

1шт.

20

75248992

RIGID TUBE

1шт.

21

75255795

HOSE,9.5mm ID x 1025mm L, SAE 100R2

1шт.

22

70623355

COLLAR

1шт.

23

70921013

ELBOW

1шт.
