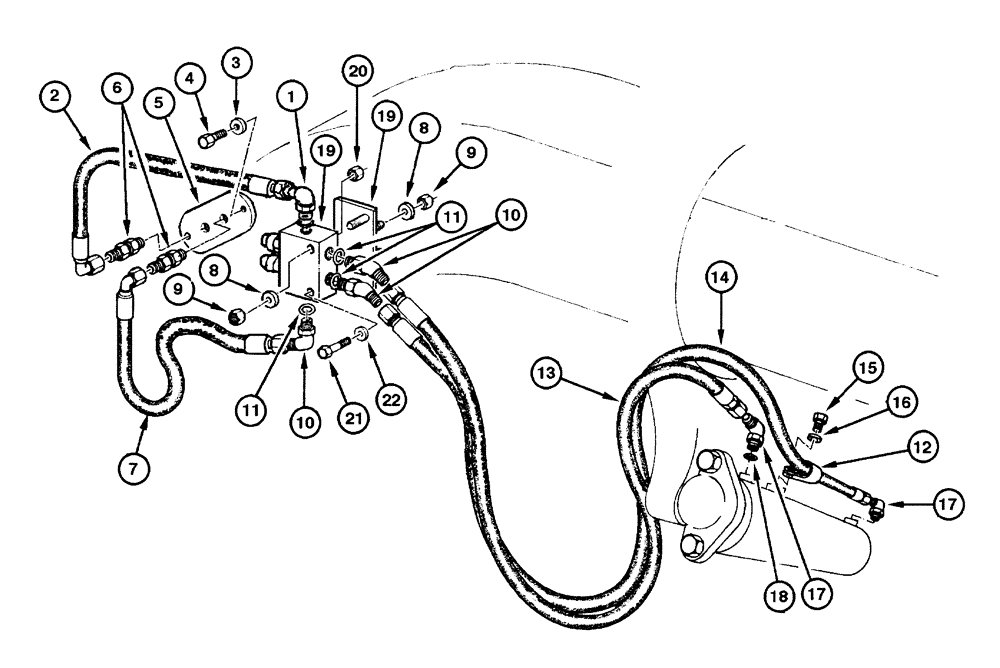

Запчасти Case 865 (08.18[00]) - CIRCLE HYDRAULIC CIRCUIT - SIDE SHIFT (08) - HYDRAULICS

1

70921402

ELBOW

1шт.

2

75252544

FLEXIBLE HOSE

1шт.

3

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

4

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

2шт.

5

75280722

COVER

1шт.

6

70927261

HYD CONNECTOR

2шт.

7

75253458

FLEXIBLE HOSE

1шт.

8

16100821

NUT,M8, Cl 10

4шт.

9

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

4шт.

10

70922507

ELBOW

3шт.

11

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

70928010

CLAMP

1шт.

13

75223104

FLEXIBLE HOSE

1шт.

14

73126279

FLEXIBLE HOSE

1шт.

15

70922763

SCREW

1шт.

16

70677006

WASHER,10.31mm ID x 22.23mm OD x 4.76mm Thk

1шт.

17

70921402

ELBOW

2шт.

18

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

19

73130105

HYDRAULIC VALVE

1шт.

20

11701721

NUT,M10, Cl 10

2шт.

21

11107331

SCREW,Hex, M10 x 55mm, Cl 10.9

2шт.

22

70630753

WASHER

2шт.

23

75320118

SUPPORT ASSY.

1шт.
