Запчасти Case 845 DHP (09-126[01]) - DECALS (09) - CHASSIS

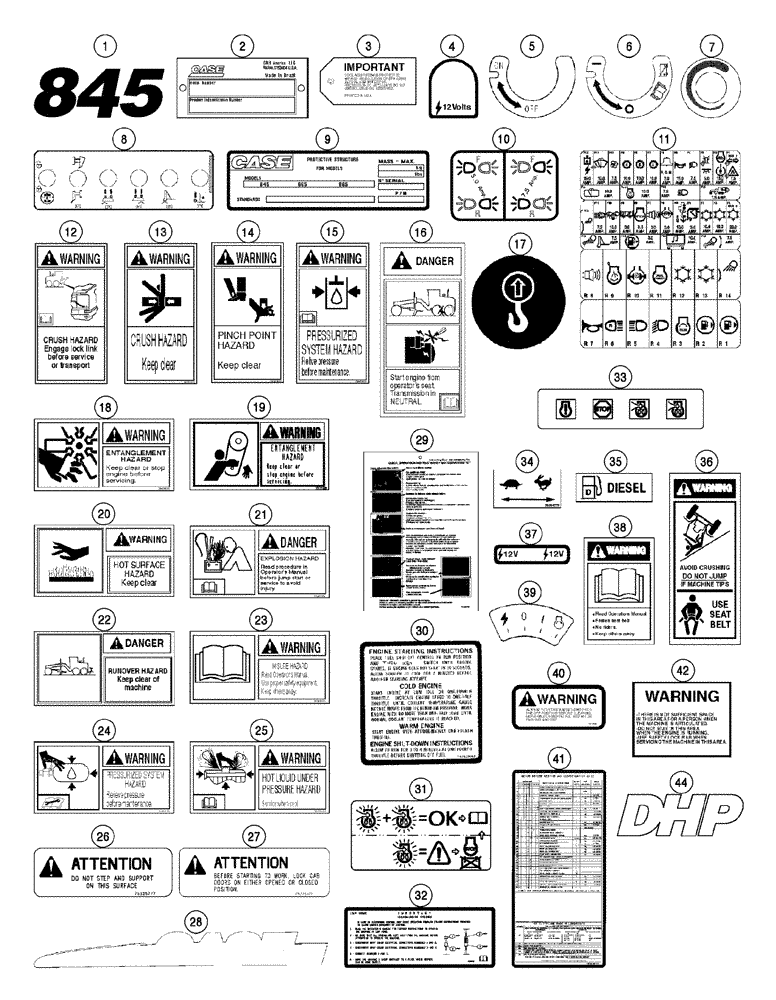

Схема запчастей Case 845 DHP - (09-126[01]) - DECALS (09) - CHASSIS
28
16
23
19
20
44
41
40
29
6
7
27
37
38
18
12
21
17
22
31
9
8
11
15
1
13
5
4
39
33
36
26
34
2
10
24
30
3
42
25
35
14
32

Артикул

Название

Примечание

Количество

1

75320220

DECAL

845

2шт.

2

75327361

PLATE

port.

1шт.

2

75327362

COVER PLATE

eng.

1шт.

3

73109097

TAG

cooling system

1шт.

4

75253332

DECAL

warning (12V)

1шт.

5

79105247

DECAL

master switch on-off

1шт.

6

75259379

DECAL

master switch

1шт.

7

75321640

DECAL

heater

1шт.

8

75322188

DECAL

switches

1шт.

9

75325066

PLATE

ROPS plate - port.

1шт.

9

75325091

PLATE

ROPS plate - eng.

1шт.

9

75325092

PLATE

ROPS plate - span.

1шт.

10

75325004

DECAL

fuses floodlights

1шт.

11

87362911

DECAL

fuse box

1шт.

12

75259377

DECAL

frame lock - eng.

1шт.

12

75259382

DECAL

frame lock - port.

1шт.

12

75259387

DECAL

frame lock - span.

1шт.

13

323694A1

DECAL

crush hazard - eng.

2шт.

13

334575A1

DECAL

crush hazard - port.

2шт.

13

334576A1

DECAL

crush hazard - span.

2шт.

14

283609A1

DECAL

pinch point - eng.

10шт.

14

391267A1

DECAL

pinch point - port.

10шт.

14

391266A1

DECAL

pinch point - span.

10шт.

15

335889A1

DECAL

pressurized system - eng.

1шт.

15

336009A1

DECAL

pressurized system - port.

1шт.

15

336011A1

DECAL

pressurized system - span.

1шт.

16

75259368

DECAL

danger starting - eng.

1шт.

16

75259384

DECAL

danger starting - port.

1шт.

16

75259393

DECAL

danger starting - span.

1шт.

17

73163135

DECAL

lifting eye

2шт.

18

332512A1

DECAL

fan warning - eng.

1шт.

18

334035A1

DECAL

fan warning - port.

1шт.

18

334034A1

WARNING DECAL

Fan, Spanish

1шт.

19

388112A1

DECAL

belt - eng.

1шт.

19

388159A1

DECAL

belt - port.

1шт.

19

388158A1

DECAL

belt - span.

1шт.

20

75259376

DECAL

hot surface - eng.

2шт.

20

75259385

DECAL

hot surface - port.

2шт.

20

75259392

DECAL

hot surface - span.

2шт.

21

412471A1

DECAL

explosion danger - eng.

1шт.

21

412475A1

DECAL

explosion danger - port.

1шт.

21

412474A1

DECAL

explosion danger - span.

1шт.

22

75259367

DECAL

run over hazard - eng.

2шт.

22

75259383

DECAL

run over hazard - port.

2шт.

22

75259391

DECAL

run over hazard - span.

2шт.

23

75325007

DECAL

misuse hazard - eng.

1шт.

23

75325006

DECAL

misuse hazard - port.

1шт.

23

75325008

DECAL

misuse hazard - span.

1шт.

24

75325025

DECAL

hydr. accumulator - eng.

1шт.

24

75325023

DECAL

hydr. accumulator - port.

1шт.

24

75325024

DECAL

hydr. accumulator - span.

1шт.

25

329044A1

WARNING DECAL,168mm x 88mm H

Pressurized Fluid - Eng

1шт.

25

334665A1

WARNING DECAL

Pressurized Fluid - Port

1шт.

25

334664A1

DECAL

pressurized fluid - span.

1шт.

26

75325777

DECAL

do not step - eng.

4шт.

26

75325776

DECAL

do not step - port.

4шт.

26

75325778

DECAL

do not step - span.

4шт.

26

75325792

DECAL

do not step - fren.

4шт.

27

75325122

DECAL

door lock - eng.

1шт.

27

75325020

DECAL

door lock - port.

1шт.

27

75325123

DECAL

door lock - span.

1шт.

28

75320376

EMBLEM

CASE stripe RH

1шт.

28

75320377

DECAL

CASE stripe RH

1шт.

28

75320378

DECAL

CASE stripe LH

1шт.

28

75320236

DECAL

CASE stripe LH

1шт.

29

75324164

DECAL

operation instructions

1шт.

30

75325000

DECAL

start instructions - eng.

1шт.

30

75324998

DECAL

start instructions - port.

1шт.

30

75324999

DECAL

start instructions - span.

1шт.

31

87687993

DATA PLAQUE

grid heather warning

1шт.

32

75325126

DECAL

trans. overide - eng.

1шт.

32

75325127

DECAL

trans. overide - port.

1шт.

32

75325128

DECAL

trans. overide - span.

1шт.

33

87684071

WARNING DECAL

failure

1шт.

34

75254779

DECAL

accelerator

1шт.

35

73163151

DECAL

fuel

1шт.

36

75325049

DECAL

do not jump - eng.

1шт.

36

75325047

DECAL

do not jump - port.

1шт.

36

75325048

DECAL

do not jump - span.

1шт.

37

75253501

DECAL

warning 12V

5шт.

38

75325028

DECAL

owner’s manual - eng.

1шт.

38

75325026

DECAL

owner’s manual - port.

1шт.

38

75325027

DECAL

owner’s manual - span.

1шт.

39

75324996

DECAL

ignition switch

1шт.

40

75325115

DECAL

master key - eng.

1шт.

40

75325114

DECAL

master key - port.

1шт.

40

75325116

DECAL

master key - span.

1шт.

41

87674752

DECAL

mainten. 845T3 Lim Slip - eng.

1шт.

41

87684056

mainten. 845T3 Diff Lock - eng.

1шт.

41

87674737

DECAL

mainten. 845T3 Lim Slip - port.

1шт.

41

87674780

DECAL

mainten. 845T3 Diff Lock - port.

1шт.

41

87674749

DECAL

mainten. 845T3 Lim Slip - span.

1шт.

41

87677043

DECAL

mainten. 845T3 Diff Lock - span.

1шт.

42

75324121

DECAL

warning - eng.

2шт.

42

75324126

DECAL

warning - port.

2шт.

42

75324206

DECAL

warning - span.

2шт.

43

75322353

WEAR STRIP

2шт.

Not shown

1шт.

44

75324509

DECAL

DHP

1шт.

Выбрано товаров: 99
