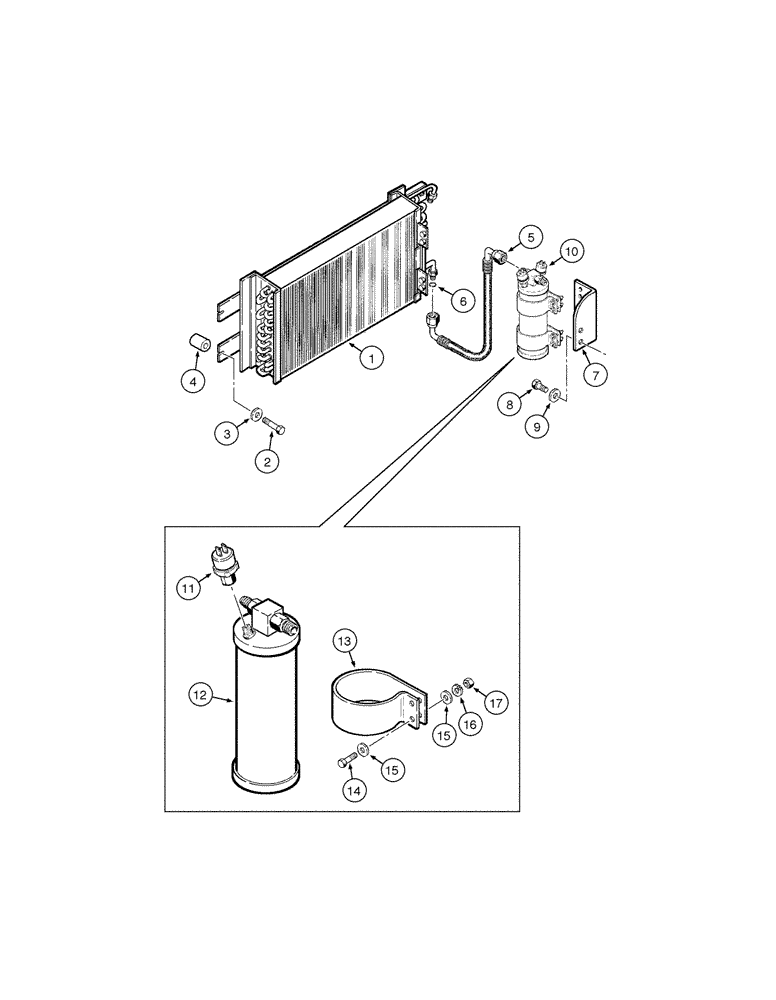

Запчасти Case 845 DHP (09-088[01]) - AIR CONDITIONING - CONDENSER MOUNTING (Mar 17 2009 1:54PM) (09) - CHASSIS

1

75325651

CONDENSER

1шт.

2

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

4шт.

3

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

4шт.

4

75223894

SPACER,12.4mm ID x 16mm OD x 40mm L

4шт.

5

75325655

HOSE

1шт.

6

71101906

O-RING

2шт.

7

75325588

BRACKET

1шт.

8

16043431

SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

9

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

10

75325647

RESERVOIR

Assy, Includes items 11, 12, 13

1шт.

11

75313577

SENSOR

2шт.

12

75251998

FILTER

1шт.

13

75261743

CLAMP

Includes items 14 - 17

2шт.

14

71100884

BOLT

4шт.

15

71100883

WASHER

8шт.

16

71100882

WASHER

4шт.

17

71100881

NUT

4шт.
