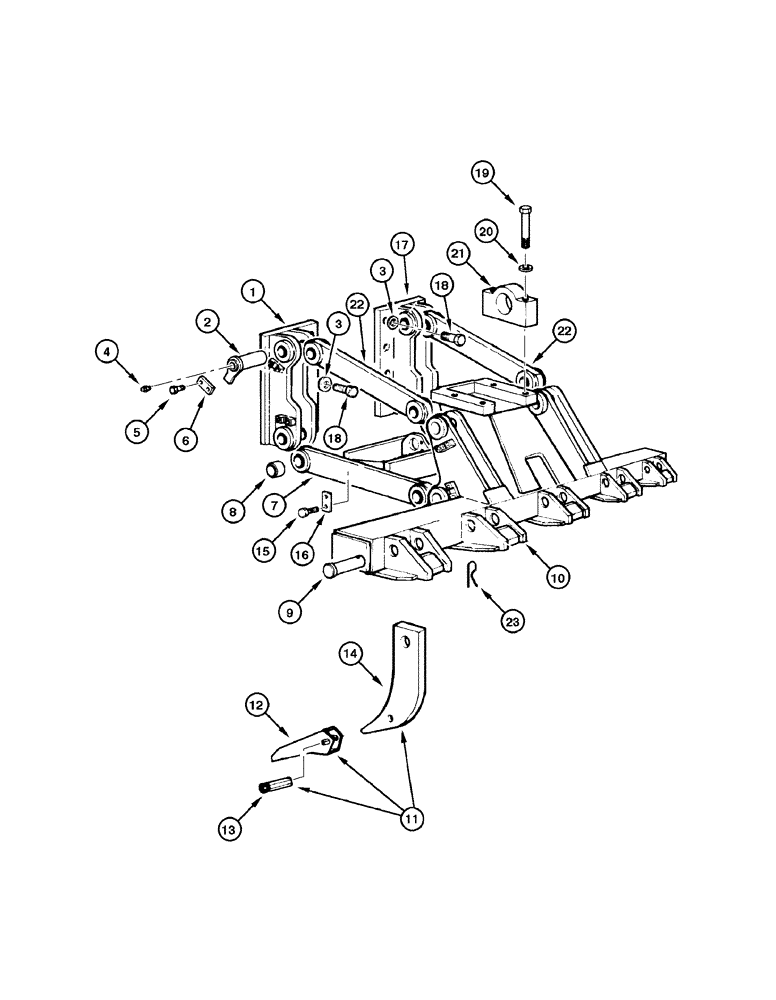

Запчасти Case 845 DHP (09-032[01]) - RIPPER - ASSEMBLY (09) - CHASSIS

1

75267056

SUPPORT

1шт.

2

75216516

PIN,49.99mm OD x 202.5mm L

8шт.

3

70928370

WASHER,1.06" ID x 2.25" OD x 0.25" Thk

12шт.

4

13407211

LUBE NIPPLE,M10 x 1

9шт.

5

15540331

BOLT,Hex, M12 x 1.25 x 25mm, Cl 10.9, Full Thd

16шт.

6

75216512

LOCK

8шт.

7

75266993

SUPPORT

1шт.

8

75216487

BUSHING,50.2mm ID x 60.1mm OD x 43mm L

16шт.

9

73162855

PIN,25.4mm OD x 95mm L

5шт.

10

75267062

SUPPORTING ARM

ripper

1шт.

11

75267078

POINT RIPPER SHANK

ripper

5шт.

12

75267670

SHANK RIPPER TOOTH

POINT RIPPER SHANK

5шт.

13

75251674

ROLL PIN

5шт.

14

75267657

SUPPORT

5шт.

15

14254231

LOCK BOLT,Hex, M14 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

16

8270126

PLATE

2шт.

17

75267011

SUPPORT

1шт.

18

15997231

BOLT,Hex, M24 x 2 x 65mm, Cl 10.9, Full Thd

12шт.

19

15861731

BOLT,Hex, M24 x 2 x 130mm, Cl 10.9

4шт.

20

10517679

LOCK WASHER,24.3mm ID x 38.3mm OD x 5.5mm Thk

4шт.

21

75267089

SUPPORT

2шт.

22

75266981

ARM

2шт.

23

8287007

LOCK PIN,11.8mm x 94.6mm L

5шт.
