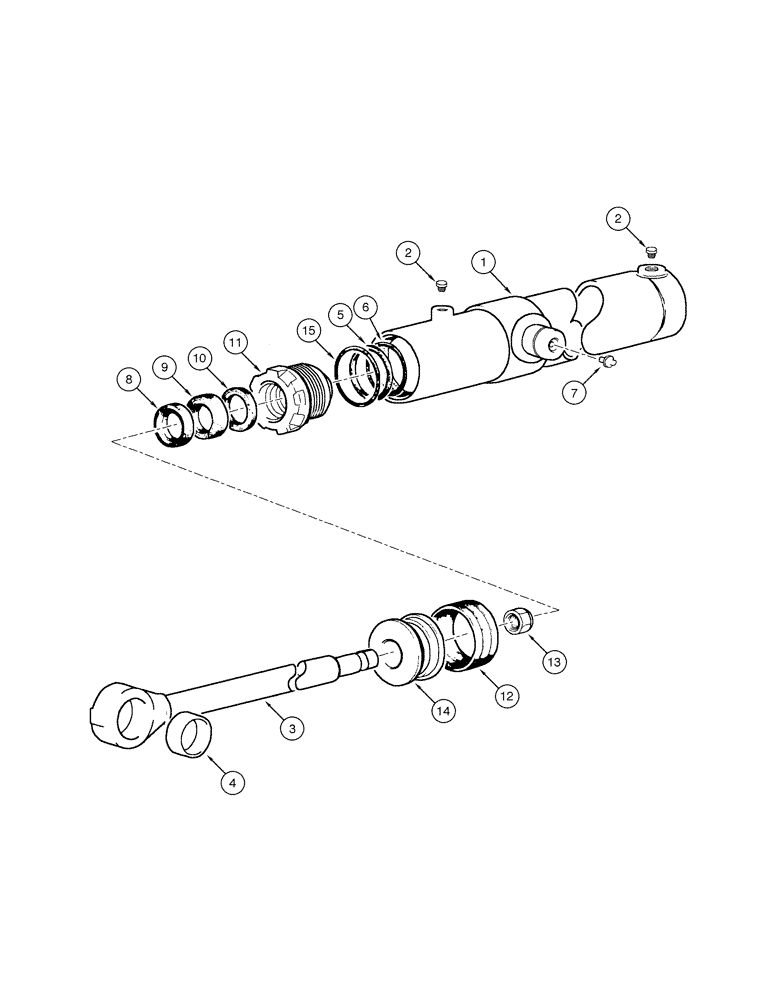

Запчасти Case 845 DHP (08-126[01]) - CYLINDER - RIPPER (08) - HYDRAULICS

75251696

CYLINDER

ripper Assy, Includes items 1 - 15

1шт.

75267105R

REMAN-HYD CYLINDER

845 DHP MOTOR GRADER TIER 3 (NA) ASN N8AF03592, ripper Assy (1/08-), Reman for New PN 75251696

1шт.

75267105C

CORE-HYD CYLINDER

Return Number

1шт.

1

75251700

LINER, ENGINE CYLIND

1шт.

2

76022111

OILER FABRIC

2шт.

3

75251697

ROD,50mm OD x 847mm L

1шт.

4

8286948

BUSHING,60.2mm ID x 72mm OD x 65mm L

2шт.

5

79021911

RING,94mm ID x 100mm OD x 6mm Thk

seal

1шт.

6

14465880

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

1шт.

7

70914465

LUBE NIPPLE

1шт.

8

8288832

O-RING

1шт.

9

8297073

BRAKE LINING

1шт.

10

8297074

RING

seal

1шт.

11

75251699

BASE PLATE

1шт.

12

8291552

SEAL,75mm ID x 98.05mm OD x 22.4mm Thk

1шт.

13

8298615

NUT

1шт.

14

75251703

PISTON,98.05mm Bore, 35mm Rod, 47mm W

1шт.

15

14466080

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

75288901

SEAL KIT

repair

1шт.

Kit includes items 4, 5, 7, 8, 9, 10, 12

1шт.
