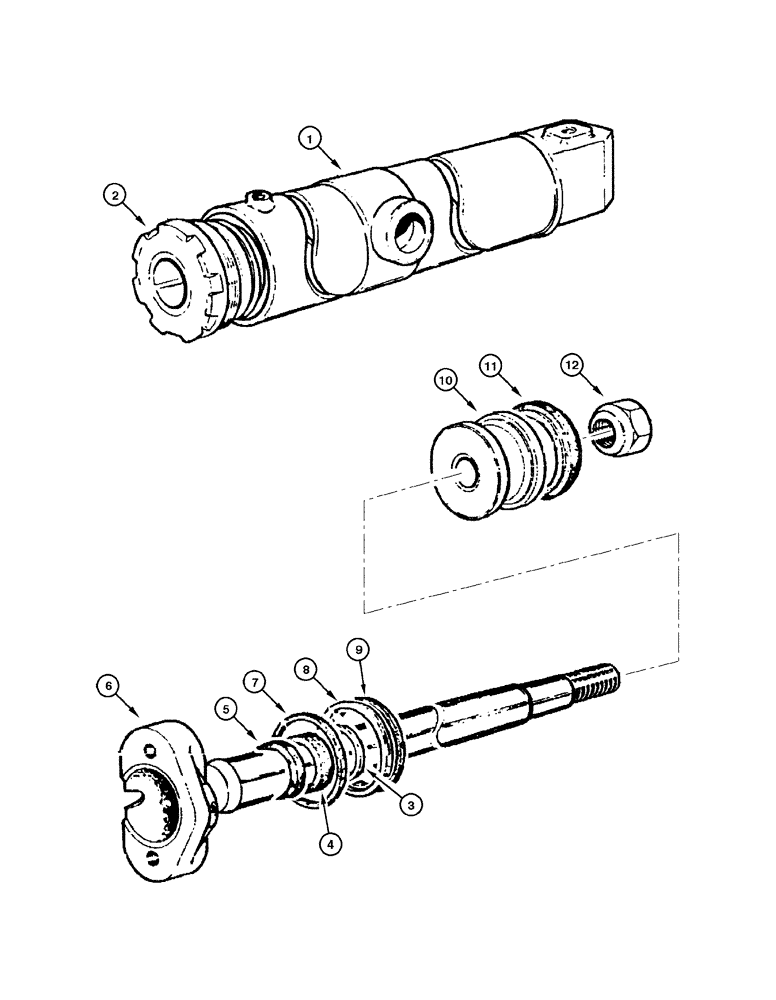

Запчасти Case 845 DHP (08-112[01]) - CYLINDER - BLADE LIFT (08) - HYDRAULICS

75267021

CYLINDER

RH Assy, Includes items 1 - 12

1шт.

75267022R

REMAN-HYD CYLINDER

RH

1шт.

75267022C

CORE-HYD CYLINDER

Return Number

1шт.

75267027

CYLINDER

LH Assy, Includes items 1 - 12

1шт.

75268459R

REMAN-HYD CYLINDER

LH

1шт.

75268459C

CORE-HYD CYLINDER

Return Number

1шт.

1

75253167

LINER, ENGINE CYLIND

LH

1шт.

1

75253166

LINER, ENGINE CYLIND

RH

1шт.

2

75220792

FLANGE

1шт.

3

79021959

RING

rod

1шт.

4

79065563

SEAL,56mm ID x 71mm OD x 10mm Thk

1шт.

5

79021957

BRAKE LINING

1шт.

6

75251460

ROD

1шт.

7

14465780

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

1шт.

8

8297075

RING,83.8mm ID x 90.21mm OD x 6mm Thk

anti-extrusion

1шт.

9

14465480

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

1шт.

10

79038228

PISTON

1шт.

11

8291561

PISTON RING,88.31mm Bore, 56mm Rod, 47mm W

1шт.

12

8298615

NUT

1шт.

84217287

KIT

repair

1шт.

Kit includes items 3, 4, 5, 7, 8, 9, 11

1шт.
