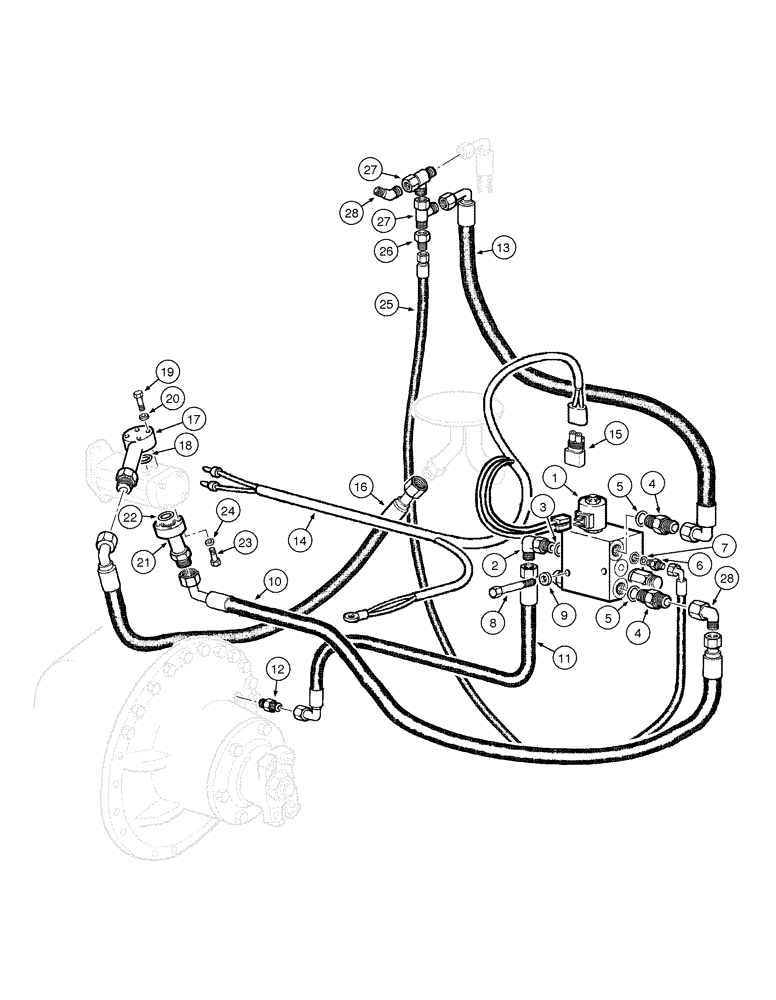

Запчасти Case 845 DHP (08-082[01]) - DIFFERENTIAL LOCK - HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

87628583

HYDRAULIC VALVE

1шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes item 3

1шт.

3

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

70923717

HYD CONNECTOR

Includes item 5

2шт.

5

70921206

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

6

70923163

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Includes item 7

1шт.

7

70921883

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

1шт.

8

86508571

BOLT,Hex, M8 x 90mm, Cl 8.8

2шт.

9

10519621

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

10

75324763

HOSE,12.7mm ID x 410mm L, SAE 100R2

1шт.

11

75324751

HOSE,12.7mm ID x 1800mm L, SAE 100R2

1шт.

12

79104773

HYD CONNECTOR

1шт.

13

75324755

HOSE,12.7mm ID x 1680mm L, SAE 100R2

1шт.

14

75325247

ELECTRIC CABLE

1шт.

15

75322270

ELEC CONNECTOR

1шт.

16

87359220

HOSE ASSY.

1шт.

17

87360474

FLANGE

1шт.

18

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

19

84068386

BOLT,Hex, M6 x 45mm, Cl 10.9

3шт.

20

14496431

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

6шт.

21

87360251

FLANGE

1шт.

22

86629585

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

23

86579344

BOLT,Hex, M6 x 35mm, Cl 10.9

3шт.

25

75324762

HOSE,6.4mm ID x 1950mm L, SAE 100R1

1шт.

26

70923102

REDUCER

1шт.

27

70921298

3 WAY CONNECTION

2шт.

28

70922507

ELBOW

1шт.

28

70921279

ELBOW

1шт.
