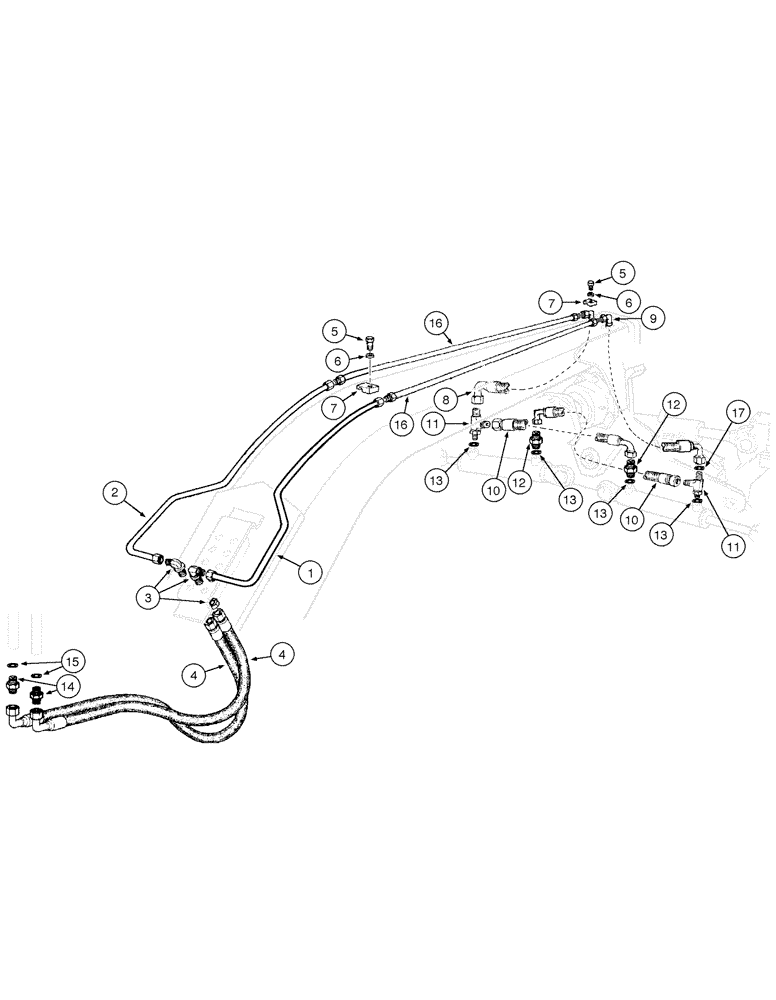

Запчасти Case 845 DHP (08-076[01]) - BRAKE AND STEERING - HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

75253440

RIGID TUBE

1шт.

2

75253439

RIGID TUBE

1шт.

3

70927163

HYD CONNECTOR

2шт.

4

75251181

FLEXIBLE HOSE

2шт.

5

16044331

SCREW,Hex, M8 x 1.25 x 55mm, Cl 10.9

6шт.

6

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

6шт.

7

73127629

CLAMP

6шт.

8

87712858

FLEXIBLE HOSE

1шт.

9

87712859

FLEXIBLE HOSE,9.53mm ID x 1380mm L, SAE 100R2

1шт.

10

87674793

FLEXIBLE HOSE

2шт.

11

86639058

TEE,13/16"-16 ORFS x M22 x 1.5 ORB Run

2шт.

12

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

2шт.

13

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

14

70921409

HYD CONNECTOR

2шт.

15

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

16

75253450

RIGID TUBE

1шт.

17

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

6шт.
