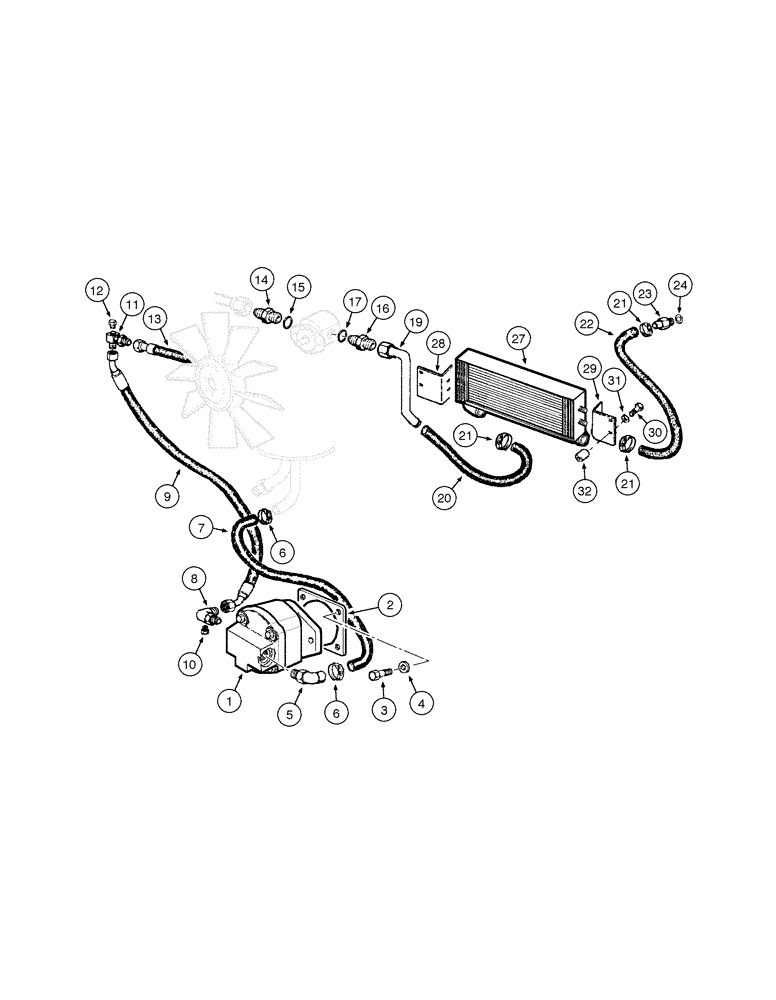

Запчасти Case 845 DHP (08-060[01]) - ENGINE COOLING SYSTEM - FAN HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP hydraulic Assy

1шт.

Page 08-66

1шт.

2

70188771

GASKET,0.79mm Thk

1шт.

3

11112431

SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd

2шт.

4

10517071

LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk

4шт.

5

75323722

HYD CONNECTOR

1шт.

6

214-2122

CLAMP,39.62mm - 45.97mm

8шт.

7

75325657

HYDRAULIC HOSE,32.00 mm ID x 390.00 mm, SAE 100R4

1шт.

8

87362914

HYD CONNECTOR

1шт.

9

75325055

HOSE,19mm ID x 750mm L, SAE 100R2

1шт.

10

70901652

PLUG

1шт.

11

75325032

HYD CONNECTOR

1шт.

12

70919134

PLUG

1шт.

13

87394148

HOSE,19mm ID x 440mm L, SAE 100R2

1шт.

14

70921228

HYD CONNECTOR

Includes item 15

1шт.

15

70921214

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

16

70921217

HYD CONNECTOR

Includes item 17

1шт.

17

70921206

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

19

73164378

PIPE

1шт.

19

84177808

SUPPORT

, Start Serial: N9AF03735

1шт.

20

75325497

HYDRAULIC HOSE,25.40 mm ID x 900.00 mm, SAE 100R3

Flexible

1шт.

21

87372829

CLAMP,1.40" - 1.56"

4шт.

22

87376433

HOSE,25.4mm ID x 600mm L, SAE 100R3

1шт.

23

87363148

HYD CONNECTOR

Includes item 24

1шт.

24

14438285

O-RING,29.5mm ID x 3.0mm

1шт.

27

87382507

OIL COOLER

1шт.

28

87376364

SUPPORT

LH

1шт.

29

87376821

SEAL

RH

1шт.

30

16044331

SCREW,Hex, M8 x 1.25 x 55mm, Cl 10.9

4шт.

31

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

4шт.

32

75223894

SPACER,12.4mm ID x 16mm OD x 40mm L

4шт.
