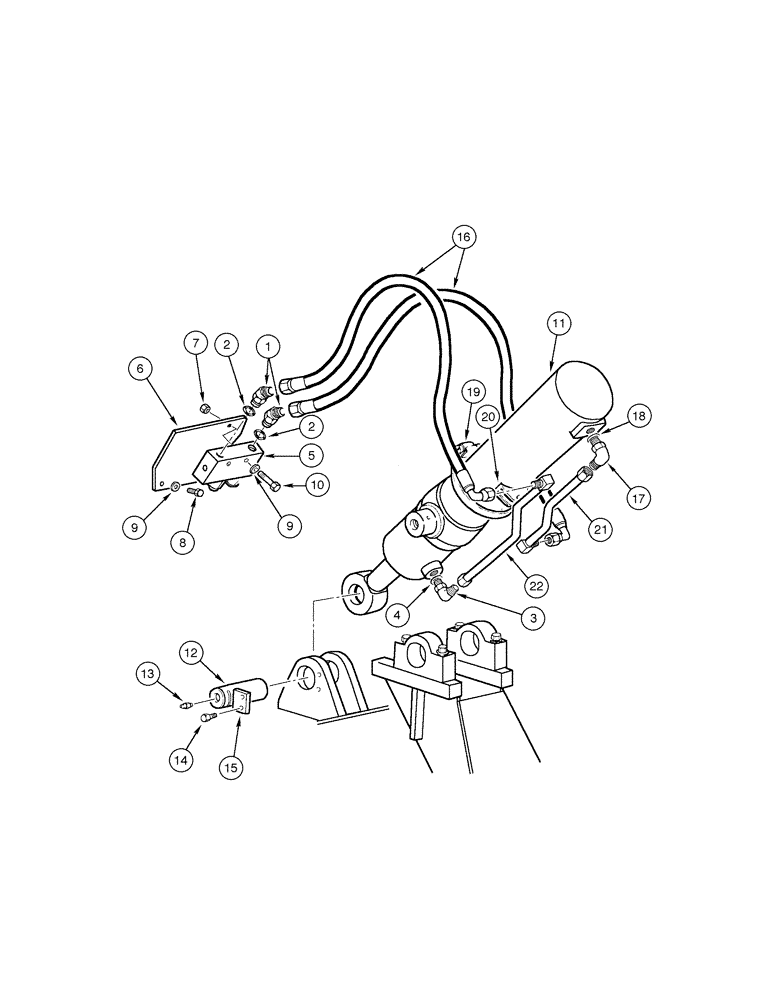

Запчасти Case 845 DHP (08-056[01]) - RIPPER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

70922507

ELBOW

Includes item 2

2шт.

2

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

3

70930804

ELBOW

Includes item 4

4шт.

4

70921885

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

REF

INSTRUCTION

VALVE retainer Assy

1шт.

Page 08-110

1шт.

6

75252422

PLATE

2шт.

7

11701721

NUT,M10, Cl 10

2шт.

8

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

2шт.

9

70630753

WASHER

4шт.

10

11107331

SCREW,Hex, M10 x 55mm, Cl 10.9

2шт.

11

REF

INSTRUCTION

CYLINDER ripper

1шт.

Page 08-128

1шт.

12

76002504

PIN,60mm OD x 170mm L

1шт.

13

13407211

LUBE NIPPLE,M10 x 1

1шт.

14

11113031

SCREW,Hex, M12 x 45mm, Cl 10.9, Full Thd

2шт.

15

8270126

PLATE

1шт.

16

73127637

FLEXIBLE HOSE

2шт.

17

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes item 18

4шт.

18

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

19

79083855

HOSE CLIP,145mm - 180mm, Worm Gear

4шт.

20

83901828

SPACER,R8.4mm, R45mm

2шт.

21

75252624

RIGID TUBE

1шт.

22

75252626

RIGID TUBE

1шт.
