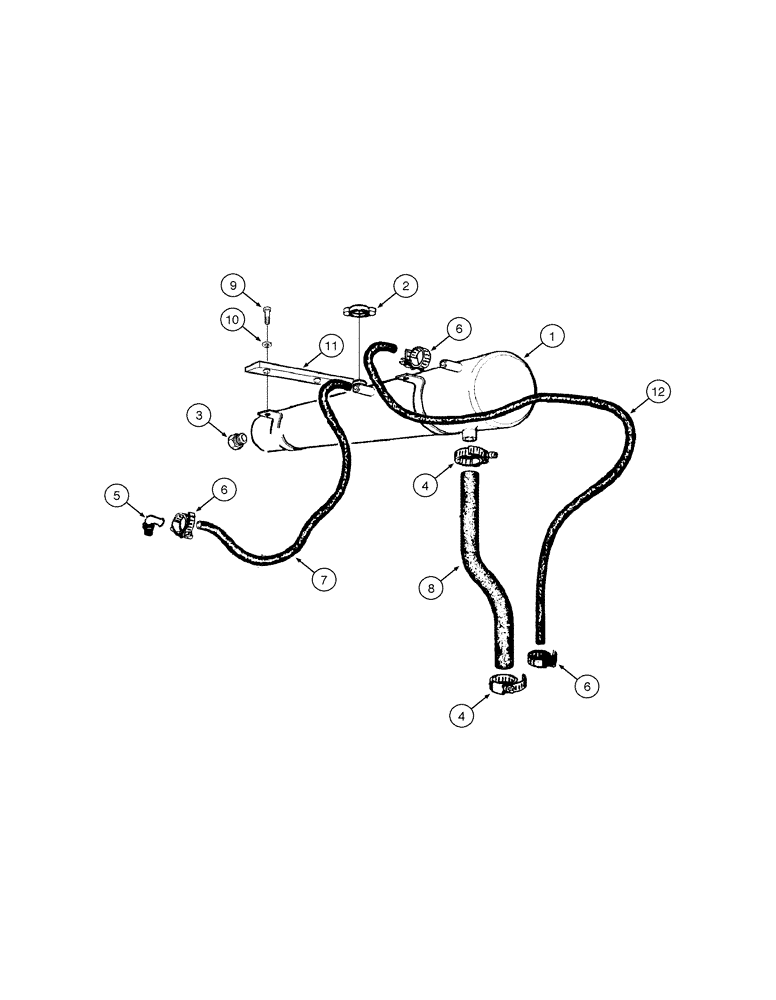

Запчасти Case 845 DHP (02-10[01]) - COOLING SYSTEM - EXPANSION TANK (02) - ENGINE

1

87365988

RESERVOIR

1шт.

2

75327024

COVER

1шт.

3

75326369

INDICATOR

level

1шт.

4

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

5

75325181

ELBOW

1шт.

6

12179490

HOSE CLIP

4шт.

7

75260373

HOSE,7.5mm ID x 660mm L

1шт.

8

75254563

HOSE,25.40 mm ID x 1210.00 mm, SAE J20C, SAE 20R

1шт.

9

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

8шт.

10

12646821

WASHER,10.2mm ID x 25mm OD x 2mm Thk

8шт.

11

75324489

SUPPORT

2шт.

12

75324361

HOSE

Flexible

1шт.
