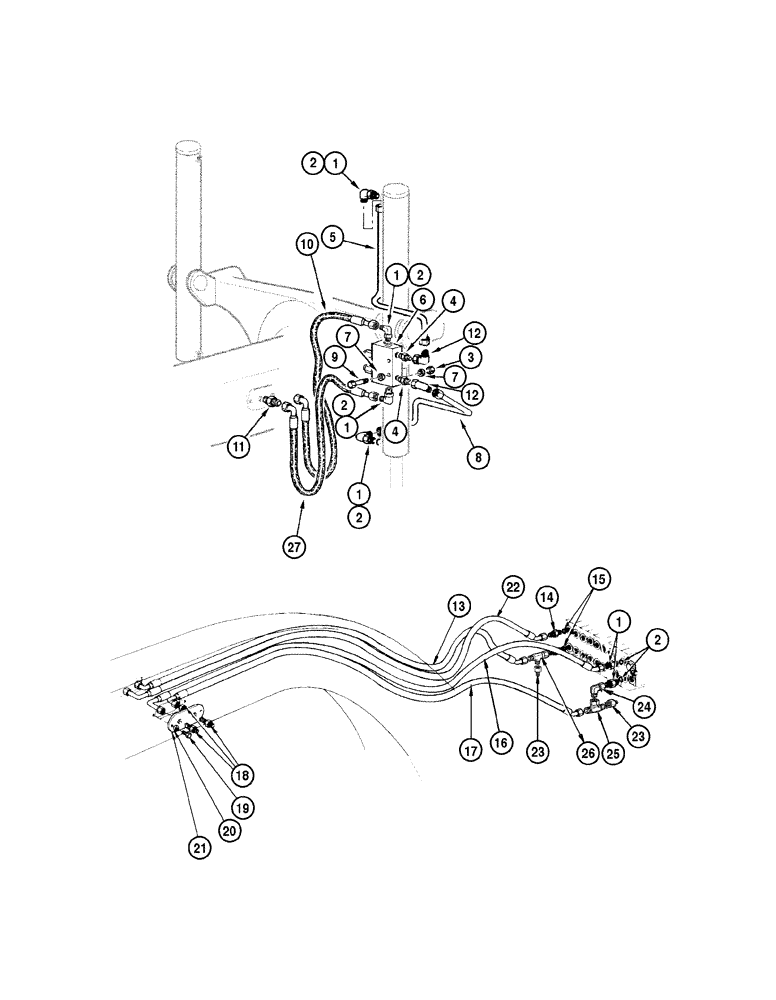

Запчасти Case 845 DHP (08-026[01]) - BLADE HYDRAULIC CIRCUIT - LIFTING (08) - HYDRAULICS

1

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes item 2

4шт.

2

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

10шт.

3

70900367

NUT

2шт.

4

70921409

HYD CONNECTOR

2шт.

5

75254144

RIGID TUBE

RH

1шт.

5

75254140

RIGID TUBE

LH

1шт.

6

REF

INSTRUCTION

VALVE retainer Assy

2шт.

Page 08-110

1шт.

7

70630753

WASHER

4шт.

8

75254146

RIGID TUBE

RH

1шт.

8

75254142

RIGID TUBE

LH

1шт.

9

11107331

SCREW,Hex, M10 x 55mm, Cl 10.9

4шт.

10

73127637

FLEXIBLE HOSE

2шт.

11

70927261

HYD CONNECTOR

4шт.

12

70921279

ELBOW

4шт.

13

75252826

FLEXIBLE HOSE

1шт.

14

70921409

HYD CONNECTOR

Includes item 15

4шт.

15

70921885

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

16

75251170

FLEXIBLE HOSE

1шт.

17

75251169

FLEXIBLE HOSE

1шт.

18

70927261

HYD CONNECTOR

4шт.

19

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

4шт.

20

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

4шт.

21

75267103

COVER

2шт.

22

75252827

FLEXIBLE HOSE

1шт.

23

70923102

REDUCER

2шт.

24

70921279

ELBOW

1шт.

25

70921276

HYD CONNECTOR

1шт.

26

70921298

3 WAY CONNECTION

1шт.

27

75325863

FLEXIBLE HOSE

2шт.
