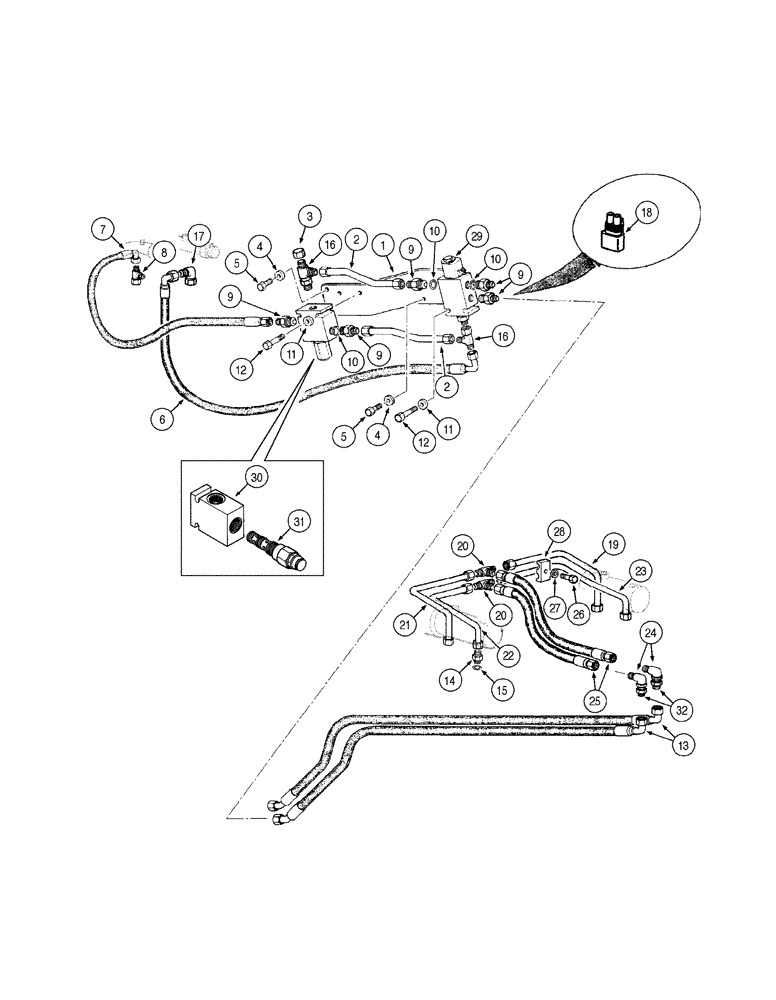

Запчасти Case 845 DHP (08-024[01]) - BLADE HYDRAULIC CIRCUIT - LOCK (5 HOLES) (08) - HYDRAULICS

1

75280725

SUPPORT

1шт.

2

75260090

TUBE

2шт.

3

70919552

CAP

1шт.

4

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

5

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

2шт.

6

75252434

FLEXIBLE HOSE

1шт.

7

75252433

FLEXIBLE HOSE

1шт.

8

79067002

HYD CONNECTOR

3шт.

9

70922522

HYD CONNECTOR

Includes item 10

4шт.

10

70921885

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

11

70928190

WASHER

2шт.

12

70930238

SCREW

4шт.

13

75252380

FLEXIBLE HOSE

2шт.

14

70922457

HYD CONNECTOR

4шт.

15

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

16

70930806

3 WAY CONNECTION

1шт.

17

70921013

ELBOW

1шт.

18

75322270

ELEC CONNECTOR

1шт.

19

73127114

RIGID TUBE,9.52 mm OD, 260, 208 mm Length

1шт.

20

70919087

3 WAY CONNECTION

2шт.

21

73127111

RIGID TUBE

1шт.

22

73127112

RIGID TUBE

1шт.

23

73127113

RIGID TUBE

1шт.

24

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

2шт.

25

70659547

HYDRAULIC HOSE

2шт.

26

70927361

SCREW

2шт.

27

70910287

LOCK WASHER

2шт.

28

70695523

CLAMP

2шт.

29

REF

INSTRUCTION

VALVE saddle lock

1шт.

Page 08-136

1шт.

30

87521643

VALVE

Includes item 31

1шт.

31

71104112

VALVE

1шт.

32

218-1254

LOCK NUT,Blkhd, 9/16"-18

2шт.
