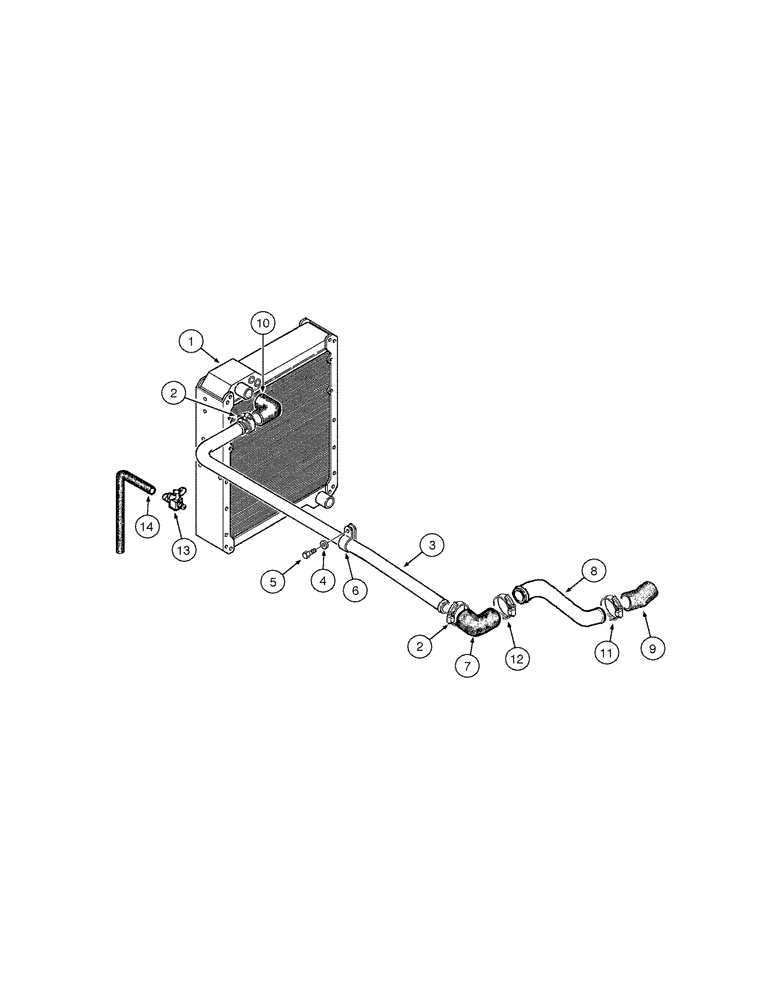

Запчасти Case 845 DHP (02-08[01]) - COOLING SYSTEM - TUBING (02) - ENGINE

1

REF

INSTRUCTION

RADIATOR Assy

1шт.

Page 02-04

1шт.

2

70921913

HOSE CLIP

6шт.

3

75324846

PIPE

1шт.

4

12646821

WASHER,10.2mm ID x 25mm OD x 2mm Thk

2шт.

5

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

2шт.

6

70928439

CLAMP

2шт.

7

75327835

RADIATOR HOSE,44.40 mm ID, 57.00 mm ID x 100.00 mm, SAE 20R4

2шт.

8

75327712

TUBE,53 mm ID, 57 mm OD, 354.5, 261 mm Length

1шт.

9

73163935

HOSE

1шт.

10

75320219

RADIATOR HOSE,57.00 mm ID x 100.00 mm, SAE J 20R4-DI

1шт.

11

70925881

CLAMP

2шт.

12

70922198

COLLAR

1шт.

13

70079751

DRAINCOCK/TAP SUPPLY

1шт.

14

75237075

FUEL HOSE,8.00 mm ID x 400.0 mm

1шт.
