Запчасти Case 845 DHP (08-014[01]) - BLADE HYDRAULIC CIRCUIT - SIDE SHIFT AND TILT (08) - HYDRAULICS

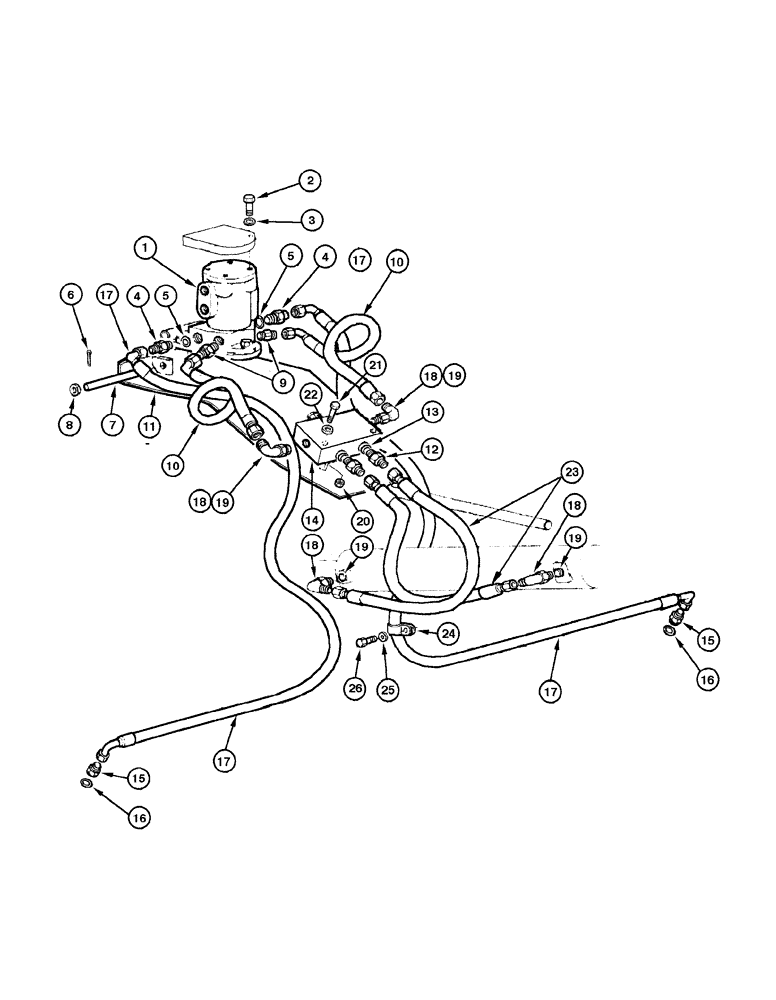

Схема запчастей Case 845 DHP - (08-014[01]) - BLADE HYDRAULIC CIRCUIT - SIDE SHIFT AND TILT (08) - HYDRAULICS
23
9
11
19
1
12
19
5
21
7
26
8
16
5
24
22
17
18
6
17
16
2
19
19
15
4
17
4
18
18
14
3
20
15
13
25
18
17
10
10

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

DISTRIBUTOR rotary Assy

1шт.

Page 08-20

1шт.

2

70921565

SCREW

4шт.

3

70912441

LOCK WASHER

4шт.

4

70923717

HYD CONNECTOR

Includes item 5

2шт.

5

70921205

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

2шт.

6

70900942

COTTER PIN

1шт.

7

70658592

PIN,9.53mm OD x 149.35mm L

1шт.

8

70911115

WASHER

1шт.

9

70922457

HYD CONNECTOR

2шт.

10

75320161

FLEXIBLE HOSE

2шт.

11

75267313

SUPPORT

1шт.

12

70922457

HYD CONNECTOR

Includes item 13

2шт.

13

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

14

REF

INSTRUCTION

VALVE retainer Assy

1шт.

Page 08-110

1шт.

15

70921409

HYD CONNECTOR

Includes item 16

2шт.

16

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

17

75255794

HYDRAULIC HOSE

2шт.

18

70923905

ELBOW

Includes item 19

2шт.

19

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

20

11701721

NUT,M10, Cl 10

2шт.

21

11107331

SCREW,Hex, M10 x 55mm, Cl 10.9

2шт.

22

70630753

WASHER

2шт.

23

75255800

HYDRAULIC HOSE

2шт.

24

70929344

CLAMP

1шт.

25

70677004

WASHER,7.14mm ID x 15.88mm OD x 3.42mm Thk

2шт.

26

70927541

SCREW

1шт.

Выбрано товаров: 28
