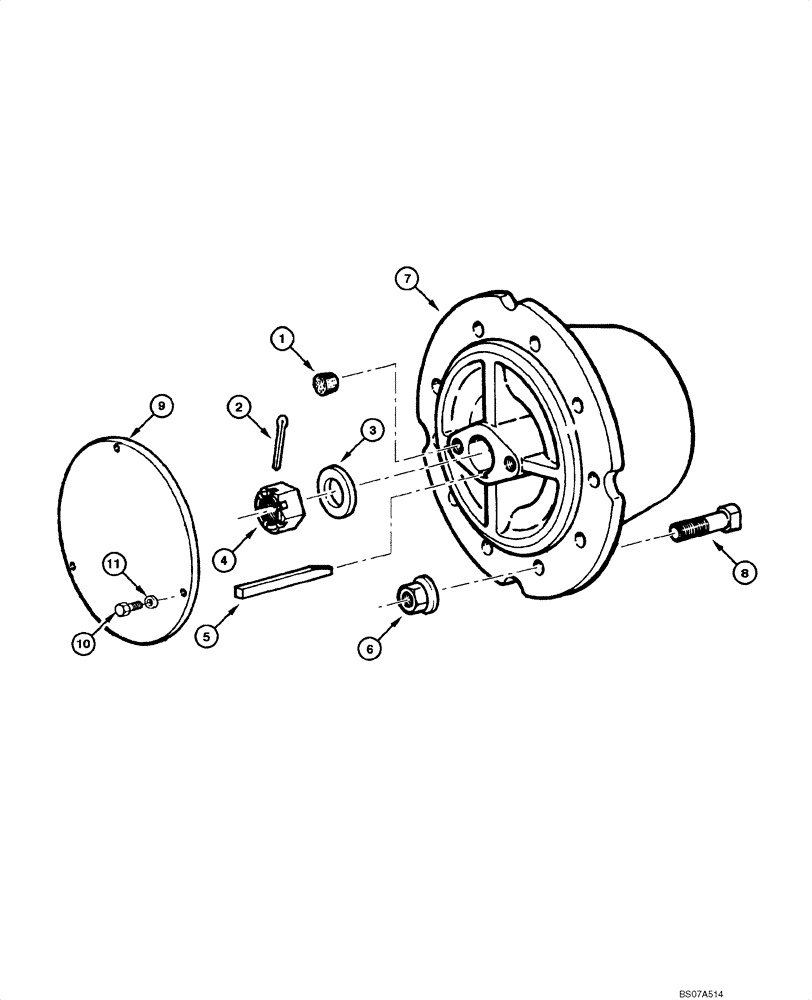

Запчасти Case 845 DHP (06.30[00]) - REAR AXLE GRAZIANO - WHEEL HUB (06) - POWER TRAIN

1

75201391

COVER

8шт.

2

70901348

COTTER PIN

4шт.

3

70605918

WASHER,46.04mm ID x 95.25mm OD x 9.53mm Thk

4шт.

4

70060670

NUT

4шт.

5

73132641

KEY

4шт.

6

75250656

WHEEL NUT

48шт.

7

75266675

HUB

Hub, Wheel

4шт.

8

75250655

WHEEL BOLT,M22 x 1.5 x 76mm, Gr 8

48шт.

9

75266756

COVER

COVER

4шт.

10

11106031

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

12шт.

11

10516873

WASHER

12шт.
