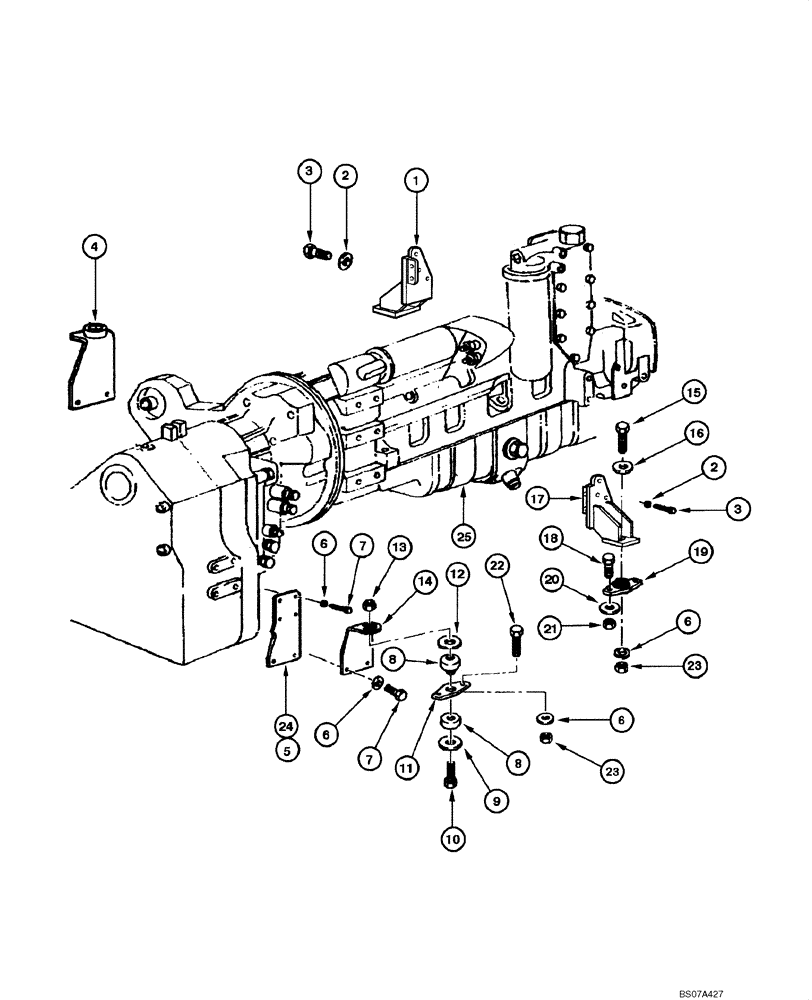

Запчасти Case 845 DHP (02.01[00]) - ENGINE - MOUNTING (02) - ENGINE

1

75327705

SUPPORT

Engine, LH

1шт.

2

10517071

LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk

6шт.

3

11112631

BOLT,Hex, M12 x 35mm, Cl 10.9

6шт.

4

75257767

BRACKET

LH

1шт.

5

75249324

SUPPORT

RH

1шт.

6

70927275

WASHER

12шт.

7

11118537

SCREW

12шт.

8

73163867

MOUNTING PARTS

Mount, Transmission

2шт.

9

73163954

WASHER,23mm ID x 89mm OD x 12.7mm Thk

2шт.

10

15994031

BOLT,Hex, M22 x 1.5 x 130mm, Cl 10.9

2шт.

11

73163953

PLATE

2шт.

12

73163534

WASHER,23.82mm ID x 88.9mm OD x 7.94mm Thk

2шт.

13

12164427

NUT,M22 x 1.5, Cl 10

2шт.

14

75257766

BRACKET

RH

1шт.

15

15846437

BOLT,Hex, M16 x 1.5 x 95mm, Cl 10.9

2шт.

16

70926195

WASHER

2шт.

17

75327704

SUPPORT

Engine, RH

1шт.

18

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

19

73163866

ENGINE MOUNT

2шт.

20

12644324

WASHER,10.2mm ID x 35mm OD x 3mm Thk

4шт.

21

11701721

NUT,M10, Cl 10

4шт.

22

11390531

BOLT,Hex, M16 x 1.5 x 40, 10.9, Full Thd

4шт.

23

12164121

NUT,M16 x 1.5, Cl 10

6шт.

24

75249325

SUPPORT

Bracket, LH

1шт.

25

75264147

ENGINE

Engine, QSB-E 140 DHP 67 L - 173HP

1шт.

REF

INSTRUCTION

S/N BREAK INFORMATION HBZ00201xx - Tier 2 845; N4AF03xxx - 845 (December 2004 production); N5AF03xxx - 845 (2005 production)

1шт.
