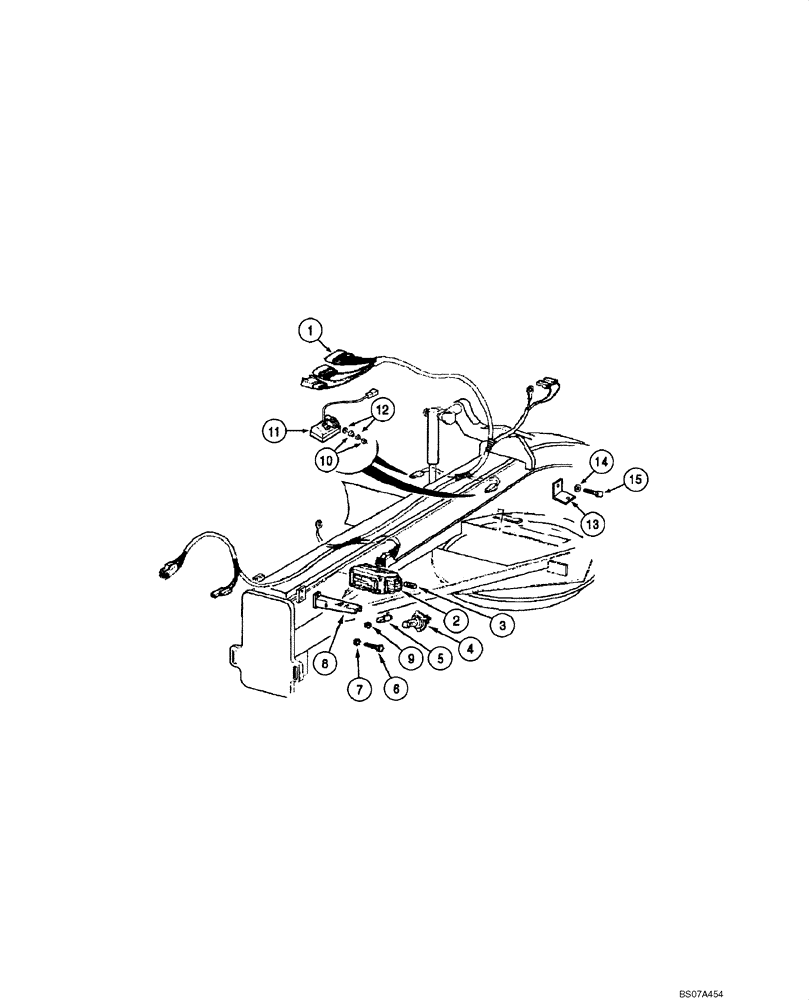

Запчасти Case 845 DHP (04.19[00]) - HEADLIGHTS - FRONT CHASSIS (04) - ELECTRICAL SYSTEMS

1

75325317

HARNESS

Front Headlight

1шт.

2

75249994

HEADLAMP

LH

1шт.

2

75249995

HEADLAMP

RH, Incl. Refs. 3 - 5

1шт.

3

79051018

BULB

1шт.

4

14152190

BULB

1шт.

5

14142490

BULB,T4W, 24V, 4W

2шт.

6

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

4шт.

7

10516871

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

4шт.

8

75267254

SUPPORT

2шт.

9

16104121

NUT,M8 x 1.25, Cl 10

2шт.

10

79089658

PAD

2шт.

11

REF

INSTRUCTION

Floodlight, See Figure 04.21

2шт.

12

75252602

WASHER,10.5mm ID x 28.5mm OD x 1.2mm Thk

2шт.

13

75248055

SUPPORT

2шт.

14

12646821

WASHER,10.2mm ID x 25mm OD x 2mm Thk

2шт.

15

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.
