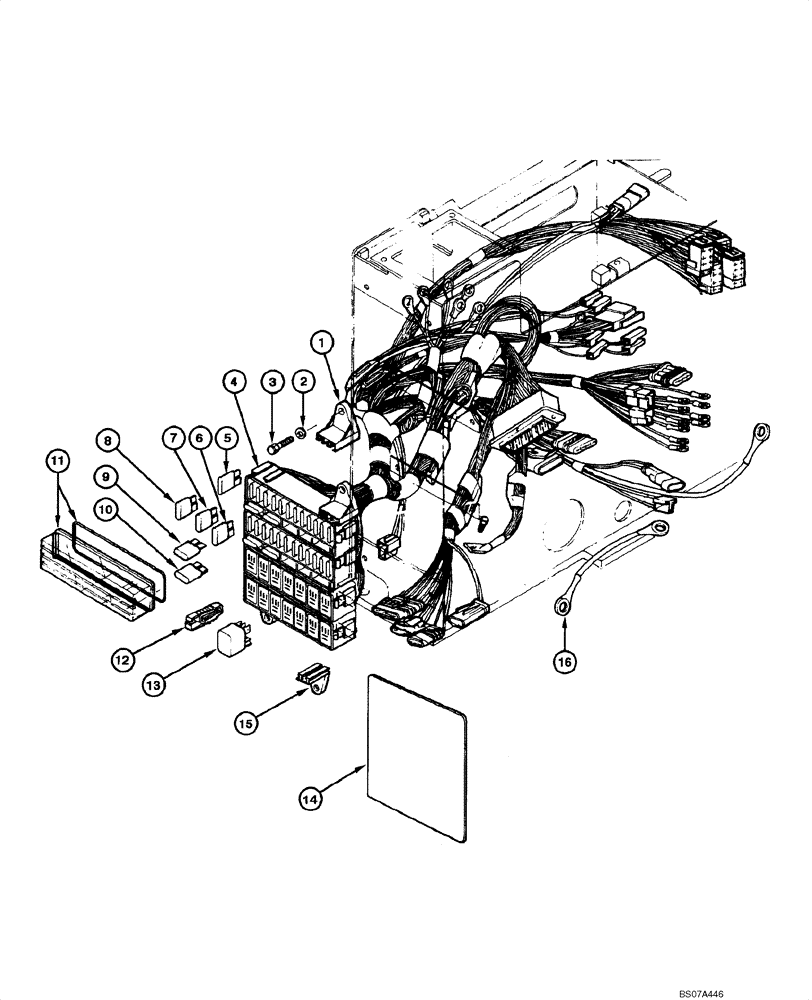

Запчасти Case 845 DHP (04.08[00]) - ELECTRICAL SYSTEM - RELAYS AND FUSES (04) - ELECTRICAL SYSTEMS

1

75250002

SUPPORT

Bracket, Female

2шт.

2

12639701

WASHER,6.15mm ID x 11mm OD x 1mm Thk

6шт.

3

10902431

SCREW,Hex, M6 x 20mm, Cl 10.9

6шт.

4

87362811

WIRE

Harness

1шт.

5

87717079

FUSE,7.5A

11шт.

6

84090658

FUSE,Lt Blue, 15 Amp

4шт.

7

9811773

FUSE,10A, Micro, Red

8шт.

8

87693742

FUSE,5A

1шт.

9

86503942

FUSE,3A, Micro

6шт.

10

9804895

FUSE,20A, Micro, Yellow

1шт.

11

75250001

COVER

4шт.

12

75250897

CLIP

1шт.

13

75251103

RELAY

6шт.

14

87362911

DECAL

1шт.

15

75250003

BRACKET

Male

2шт.

16

75327378

HARNESS

Harness

1шт.
