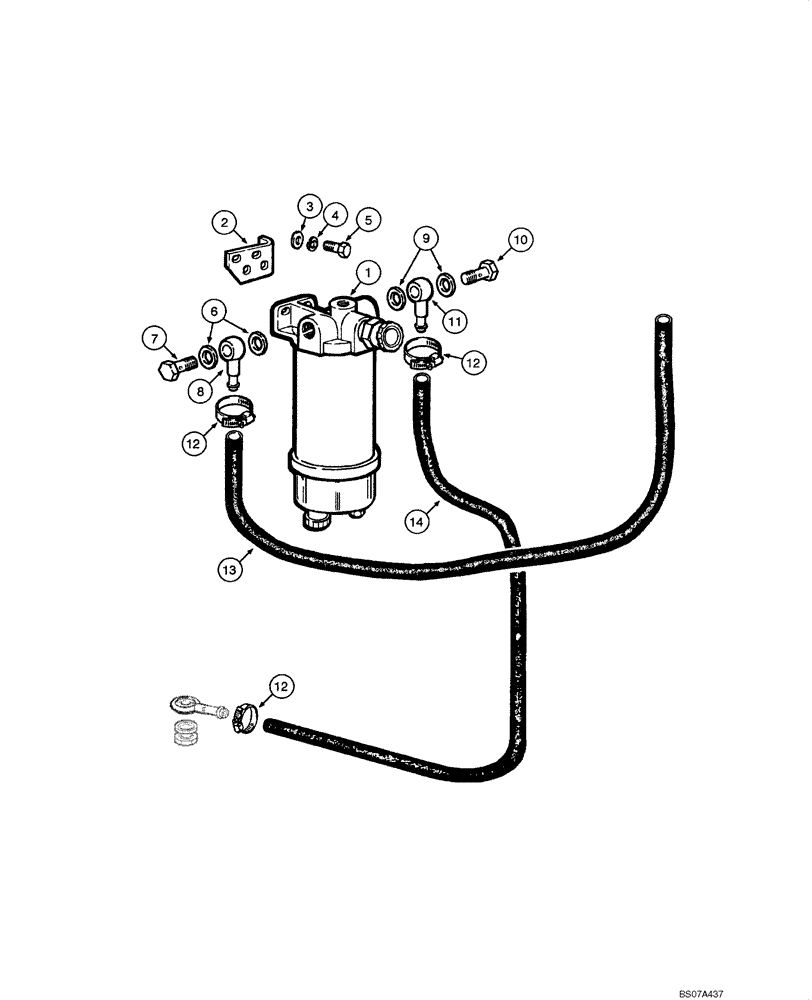

Запчасти Case 845 DHP (03.05[00]) - FUEL LINE - FUEL FILTER (03) - FUEL SYSTEM

1

REF

INSTRUCTION

FILTER, See Figure 03.05

1шт.

2

87567535

SUPPORT

1шт.

3

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

4шт.

4

10569371

LOCK WASHER

4шт.

5

16043831

SCREW,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

6

87537926

SEALING WASHER

SEALRING RING, SEAL

4шт.

7

10181711

BANJO BOLT,M12 x 1.5 x 23mm

1шт.

8

87359995

BANJO FITTING

2шт.

9

87535674

RING, SEAL

2шт.

10

10184317

BANJO BOLT,M14 x 1.5 x 27mm

1шт.

11

79010214

HYD CONNECTOR

1шт.

12

12179490

HOSE CLIP

4шт.

13

87361280

FUEL HOSE,9.53 mm ID x 1450.00 mm, SAE J30, SAE 30R2 Type 1

1шт.

14

87361277

FUEL HOSE,9.53 mm ID x 1000.00 mm, SAE J30R2 Type 1

1шт.
