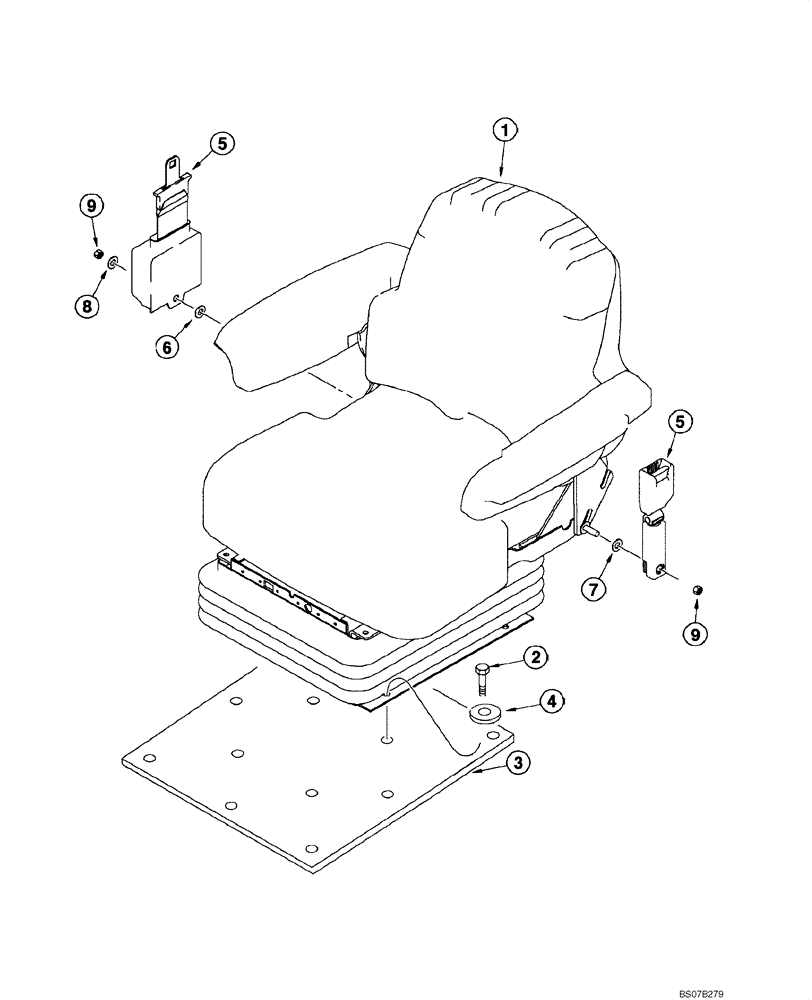

Запчасти Case 845 DHP (09.53[00]) - SEAT - MOUNTING (09) - CHASSIS

1

399257A1

DRIVER SEAT

Fabric, See Figure 09.54

1шт.

1

399259A1

DRIVER SEAT

Suspension Option, See Figure 09.56

1шт.

1

399261A1

DRIVER SEAT

Vinyl, See Figure 09.54

1шт.

2

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

4шт.

3

87539163

COVER

Upper

1шт.

4

12642021

WASHER

4шт.

5

249116A1

SAFETY BELT ,50.80 mm W

1шт.

6

NSS

NOT SOLD SEPARAT

Washer

1шт.

6

NSS

NOT SOLD SEPARAT

Washer

1шт.

8

495-11047

WASHER,7/16", SAE

1шт.

9

231-2447

LOCK NUT,7/16"-14, GB

2шт.

5

249117A1

SAFETY BELT ,76.20 mm W

1шт.

6

NSS

NOT SOLD SEPARAT

Washer

1шт.

7

NSS

NOT SOLD SEPARAT

Washer

1шт.

8

495-11047

WASHER,7/16", SAE

1шт.

9

231-2447

LOCK NUT,7/16"-14, GB

2шт.
