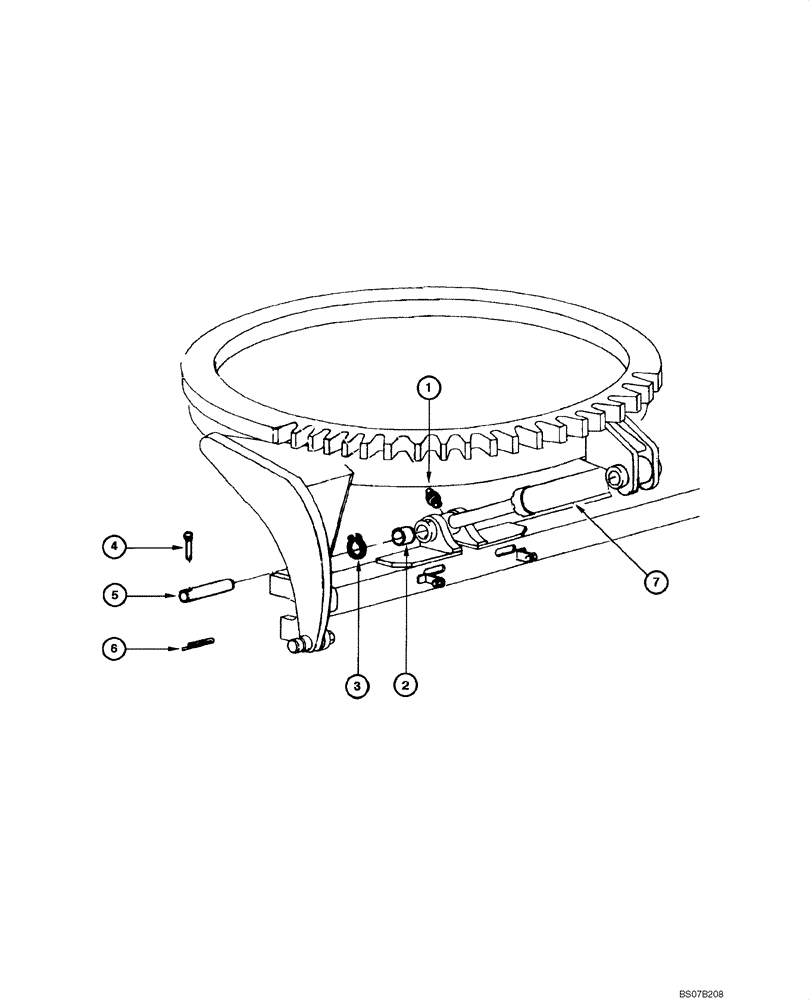

Запчасти Case 845 DHP (09.15[00]) - BLADE - TILT MECHANISM (09) - CHASSIS

1

70914465

LUBE NIPPLE

2шт.

2

70928851

BEARING ASSY

2шт.

3

11061076

SNAP RING,M62, Int

4шт.

4

75213766

PIN,10.71mm OD x 88mm L

2шт.

5

75213765

PIN,38.08mm OD x 181mm L

2шт.

6

70900805

COTTER PIN,1/8" x 3/4"

2шт.

7

REF

INSTRUCTION

Cylinder Blade, See Figure 08.58

1шт.
