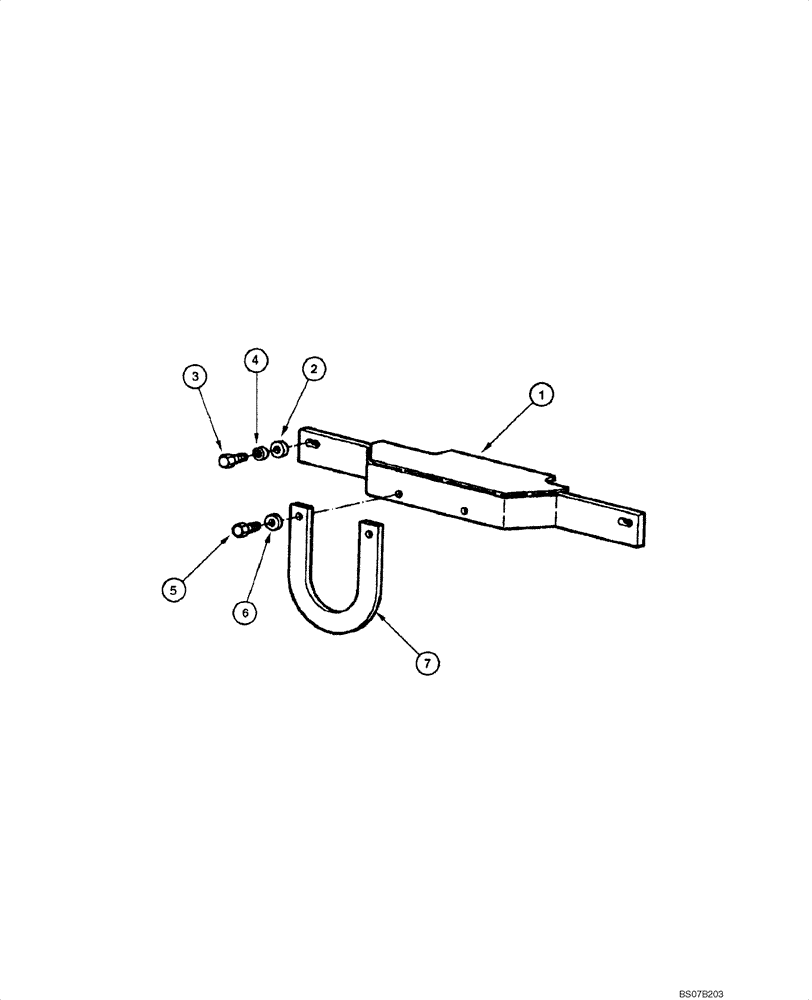

Запчасти Case 845 DHP (09.06[00]) - PROPELLER SHAFT GUARD - ASSEMBLY (09) - CHASSIS

1

75267269

GUSSET

Guard

1шт.

2

12648521

WASHER,12.2mm ID x 28mm OD x 4mm Thk

2шт.

3

11112831

SCREW,Hex, M12 x 40mm, Cl 10.9, Full Thd

2шт.

4

10517073

LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk

2шт.

5

11106631

SCREW,Hex, M10 x 35mm, Cl 10.9, Full Thd

2шт.

6

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

7

75254126

BRACKET

1шт.
