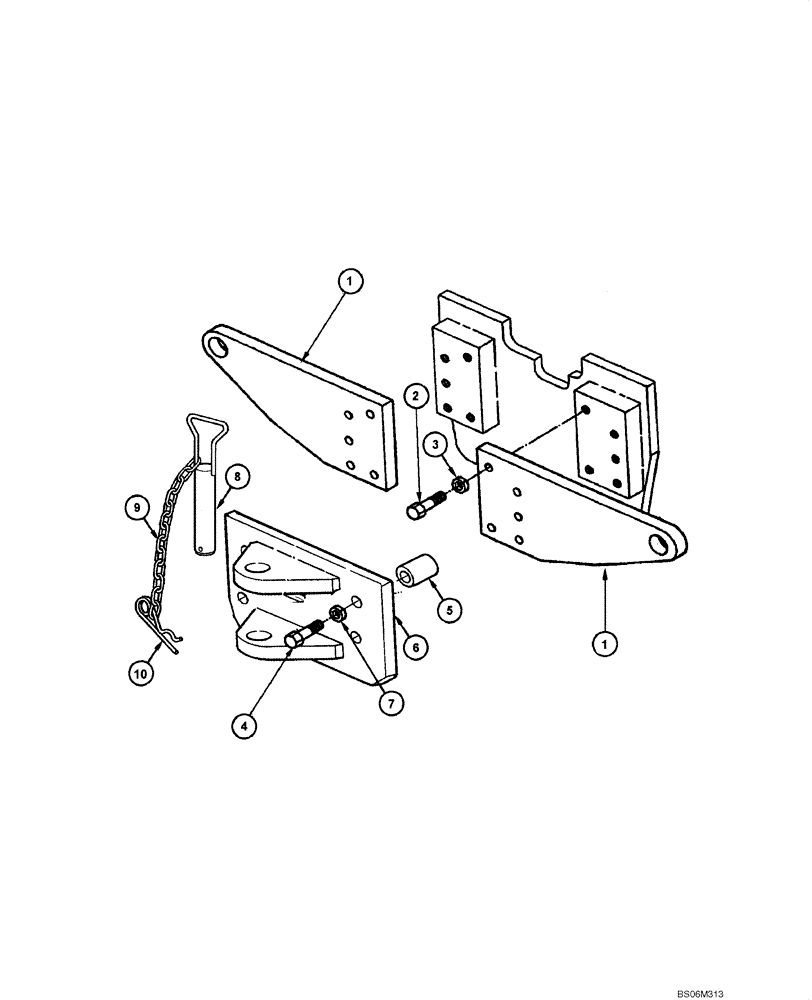

Запчасти Case 845 DHP (09.05[00]) - LIFTING SUPPORT - ASSEMBLY (09) - CHASSIS

1

75267281

PLATE

Plate

2шт.

2

15997231

BOLT,Hex, M24 x 2 x 65mm, Cl 10.9, Full Thd

10шт.

3

10517679

LOCK WASHER,24.3mm ID x 38.3mm OD x 5.5mm Thk

10шт.

4

15990131

BOLT,Hex, M20 x 1.5 x 150mm, Cl 10.9

4шт.

5

87574342

BUSHING,21mm ID x 37.9mm OD x 53mm L

4шт.

6

75267322

HOOK

Tow Hook

1шт.

7

14497131

WASHER,21mm ID x 37mm OD x 3mm Thk

4шт.

8

75239719

PIN,45mm OD x 304mm L

Incl. Refs. 9 - 10

1шт.

9

79095552

CHAIN,490mm L

1шт.

10

79079314

COTTER PIN,M6 x 140

1шт.
