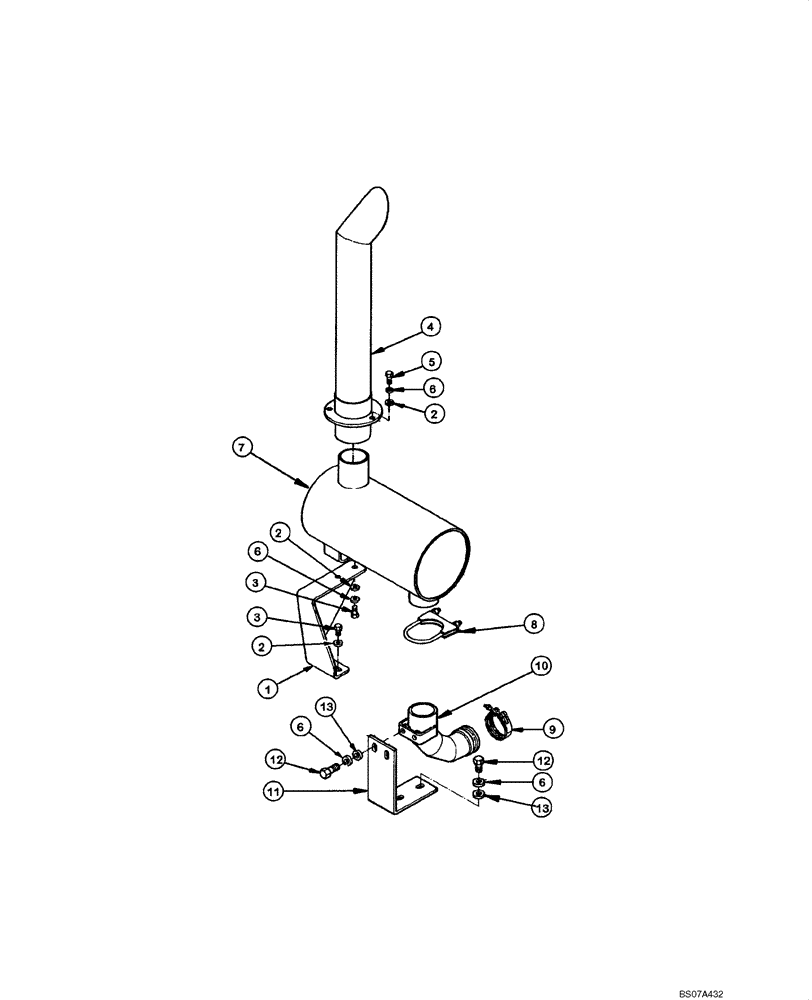

Запчасти Case 845 DHP (02.10[00]) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

1

87359186

SUPPORT

1шт.

2

12646821

WASHER,10.2mm ID x 25mm OD x 2mm Thk

7шт.

3

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

4

75323452

PIPE

1шт.

5

11106631

SCREW,Hex, M10 x 35mm, Cl 10.9, Full Thd

3шт.

6

10516871

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

9шт.

7

73164453

MUFFLER

1шт.

8

A162896

CLAMP

1шт.

9

A170467

CLAMP,72mm ID

1шт.

10

75327717

PIPE

1шт.

11

75327718

BRACKET, SUPPORTING

1шт.

12

11106031

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

6шт.

13

70677006

WASHER,10.31mm ID x 22.23mm OD x 4.76mm Thk

4шт.
