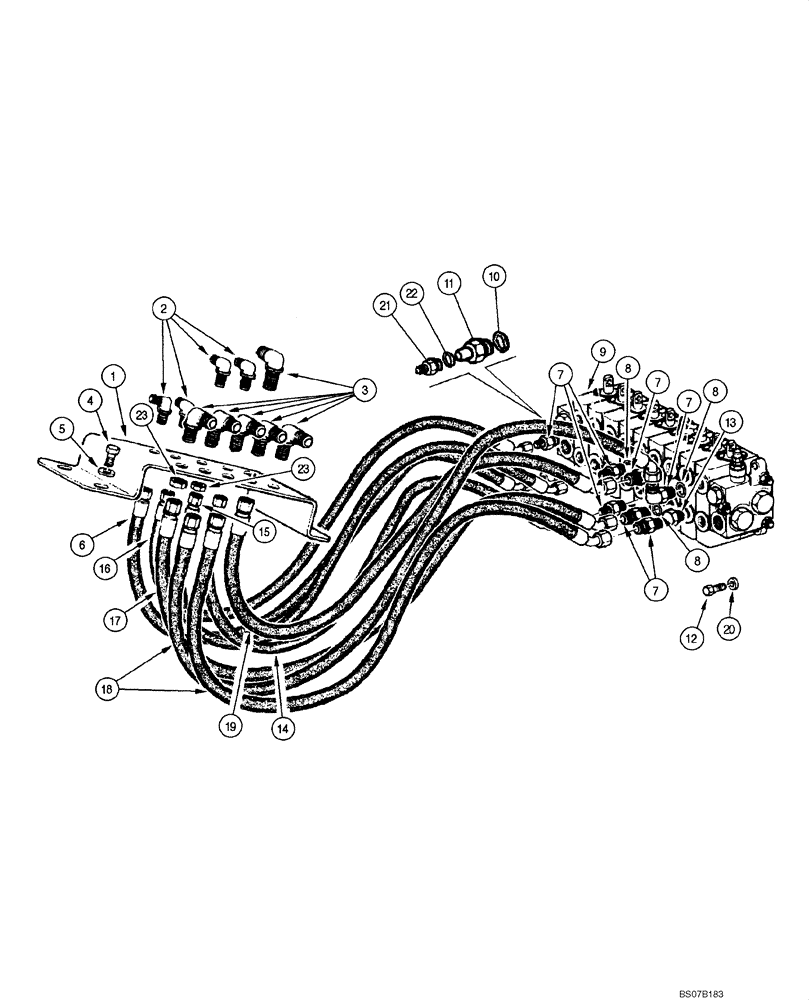

Запчасти Case 845 DHP (08.45[00]) - DISTRIBUTOR - HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

75280667

PLATE

1шт.

2

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

4шт.

3

70927163

HYD CONNECTOR

6шт.

4

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

4шт.

5

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

4шт.

6

75251188

FLEXIBLE HOSE

1шт.

7

70922457

HYD CONNECTOR

Incl. 8

3шт.

8

70921885

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

7шт.

9

REF

INSTRUCTION

Valve, Distributor, See Figure 08.44

1шт.

10

70921885

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9шт.

11

75325758

ORIFICE

2шт.

12

70921565

SCREW

4шт.

13

70922577

PLUG

1шт.

14

75252832

FLEXIBLE HOSE

1шт.

15

75251190

FLEXIBLE HOSE

1шт.

16

75251192

FLEXIBLE HOSE

1шт.

17

75251194

FLEXIBLE HOSE

1шт.

18

75252425

FLEXIBLE HOSE

1шт.

19

75251191

FLEXIBLE HOSE

1шт.

20

70630753

WASHER

4шт.

21

70925656

HYD CONNECTOR

2шт.

22

70923845

O-RING

2шт.

23

218-1254

LOCK NUT,Blkhd, 9/16"-18

4шт.
