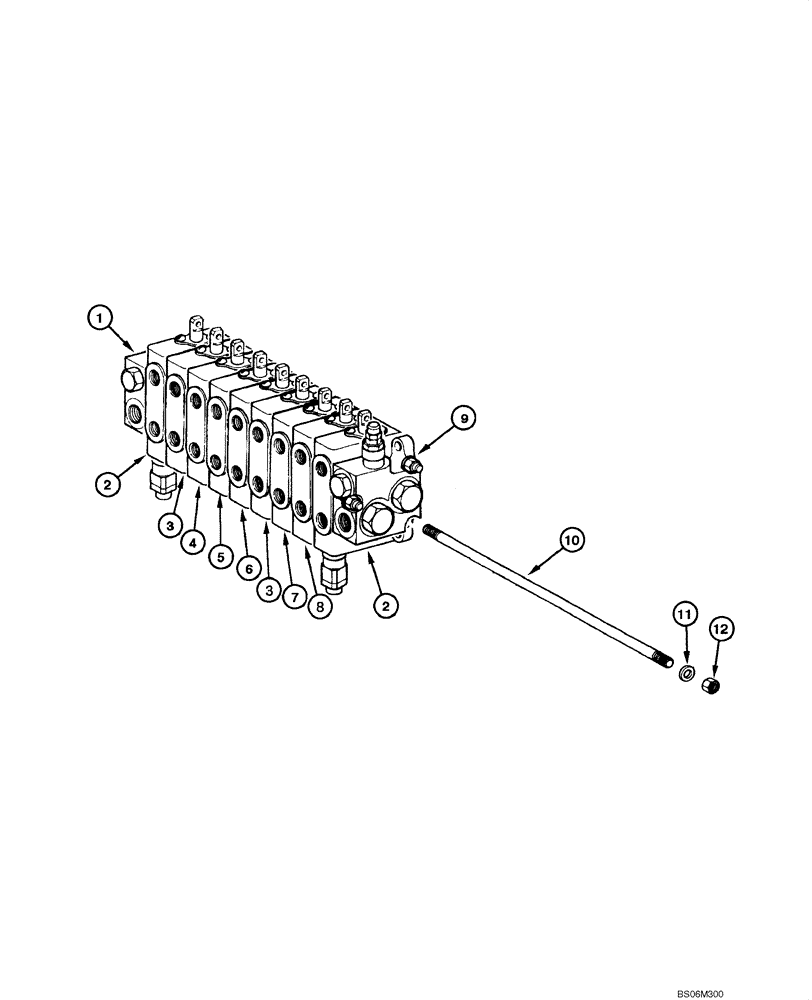

Запчасти Case 845 DHP (08.44[00]) - DISTRIBUTOR - ASSEMBLY (08) - HYDRAULICS

73162923

CONTROL VALVE

Incl. 1 - 12

1шт.

1

75289561

HYDRAULIC VALVE

Inlet, See Figure 08.46

1шт.

2

75289554

HYDRAULIC VALVE

Blade lift, See Figure 08.47

2шт.

3

75289557

HYDRAULIC VALVE

Scarifer, See Figure 08.48

2шт.

4

75289560

HYDRAULIC VALVE

Blade Side shift, See Figure 08.49

1шт.

5

75289559

HYDRAULIC VALVE

Blade tilt, See Figure 08.50

1шт.

6

75289558

HYDRAULIC VALVE

Turn-circle, See Figure 08.51

1шт.

7

75289556

HYDRAULIC VALVE

Link, See Figure 08.52

1шт.

8

75289555

HYDRAULIC VALVE

Circle shiftoutlet, See Figure 08.53

1шт.

9

75289553

HYDRAULIC VALVE

Inlet, See Figure 08.54

1шт.

10

75289562

TIE-ROD

3шт.

11

75289564

WASHER

6шт.

12

75289563

NUT

6шт.
