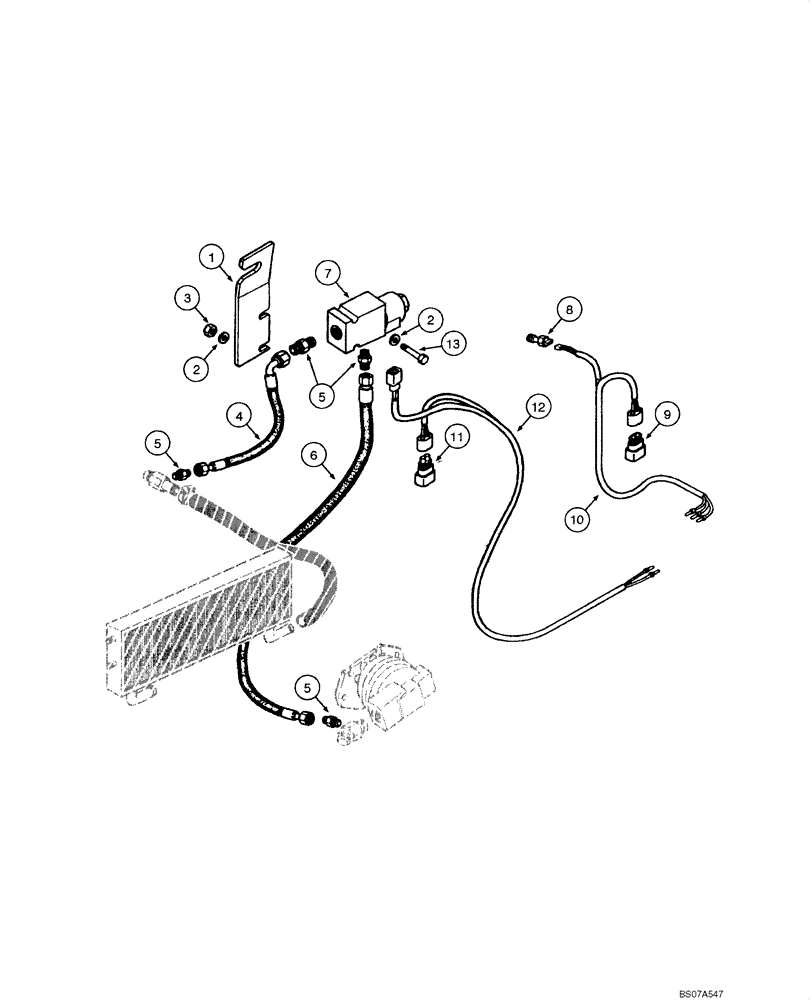

Запчасти Case 845 DHP (08.34[00]) - ENGINE COOLING SYSTEM - "ON-OFF" SYSTEM (08) - HYDRAULICS

1

87364856

SUPPORT

Support

1шт.

2

70928190

WASHER

4шт.

3

70916590

NUT

2шт.

4

87365148

HOSE,9.5mm ID x 500mm L, SAE 100R1

Hose Assy.

1шт.

5

70919062

HYD CONNECTOR

4шт.

6

87365033

HOSE,9.5mm ID x 800mm L, SAE 100R2

Hose Assy.

1шт.

7

73159101

ELECTROMAGNET

Valve

1шт.

8

87365338

LARGE HOSE

HOSE,LARGE

1шт.

9

75283949

DIODE ELEMENT

1шт.

10

87368643

WIRE HARNESS

Harness

1шт.

11

75322270

ELEC CONNECTOR

1шт.

12

87368651

WIRE HARNESS

Cable

1шт.

13

70930238

SCREW

2шт.
