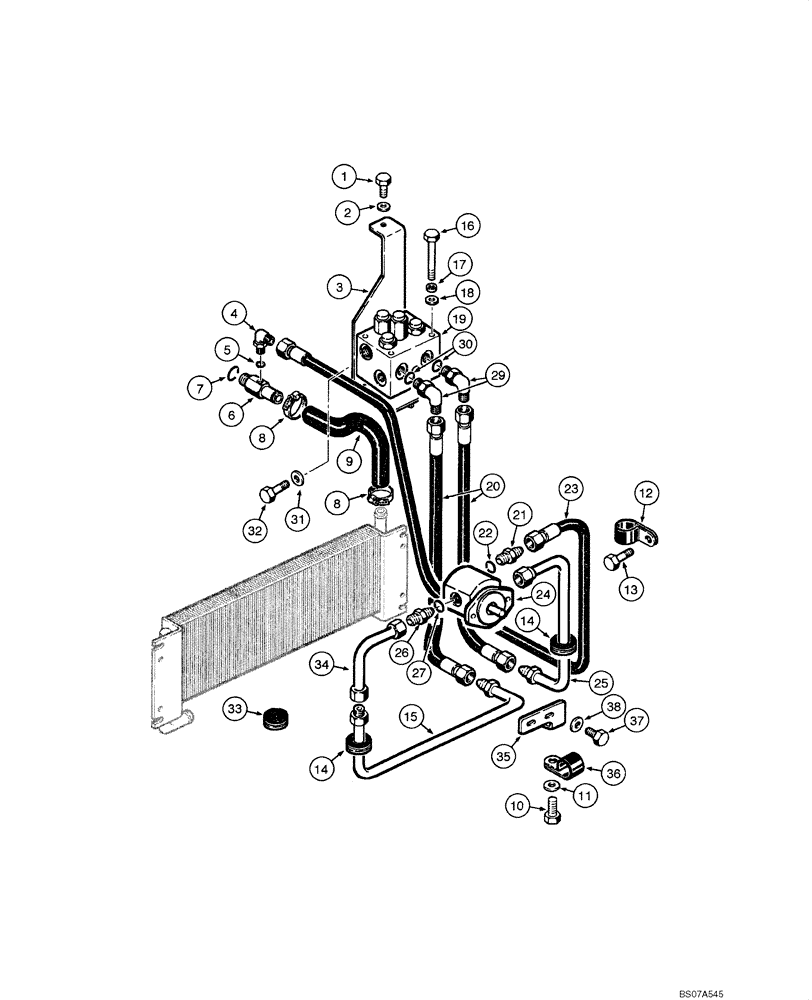

Запчасти Case 845 DHP (08.31[00]) - ENGINE COOLING SYSTEM - REVERSE FAN HYDRAULIC MOTOR (08) - HYDRAULICS

1

15219531

BOLT

1шт.

2

10520201

WASHER,16.4mm ID x 28mm OD x 3mm Thk

1шт.

3

75327641

SUPPORT

1шт.

4

70919135

HYD CONNECTOR

Incl. Ref. 5

1шт.

5

70921885

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

87363148

HYD CONNECTOR

Incl. Ref. 7

1шт.

7

14438285

O-RING,29.5mm ID x 3.0mm

1шт.

8

87372829

CLAMP,1.40" - 1.56"

2шт.

9

8736433

1шт.

10

1110631

1шт.

11

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

12

70927155

CLIP

1шт.

13

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

1шт.

14

75327777

GROMMET

3шт.

15

87398120

TUBE,393, 210 mm L

1шт.

16

814-8140

BOLT,Hex, M8 x 1.25 x 140mm, Cl 8.8

4шт.

17

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

4шт.

18

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

19

REF

INSTRUCTION

See Figure 08-33

1шт.

20

75325055

HOSE,19mm ID x 750mm L, SAE 100R2

2шт.

21

79066938

FITTING

1шт.

22

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

23

75326973

HOSE ASSY.

1шт.

24

75326838

HYDRAULIC MOTOR,GEAR, 27 CC

1шт.

24

75326838R

REMAN-HYD MOTOR

845 DHP MOTOR GRADER - TIER 3 (NA) - ASN N7AF03356 (1/07-)

1шт.

24

75326838C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

25

87398121

TUBE

1шт.

26

70921217

HYD CONNECTOR

2шт.

27

70921206

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

28

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

1шт.

29

79067025

ELBOW

2шт.

30

14457981

O-RING,1.049" ID x 0.103" Width

2шт.

31

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

32

16043131

BOLT,Hex, M8 x 1.25 x 14mm, Cl 10.9, Full Thd

2шт.

33

14507887

PLUG,25mm ID, 39mm OD

1шт.

34

87398112

TUBE

1шт.

35

87398937

BRACKET

1шт.

36

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

2шт.

37

16043431

SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

38

10519621

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.
