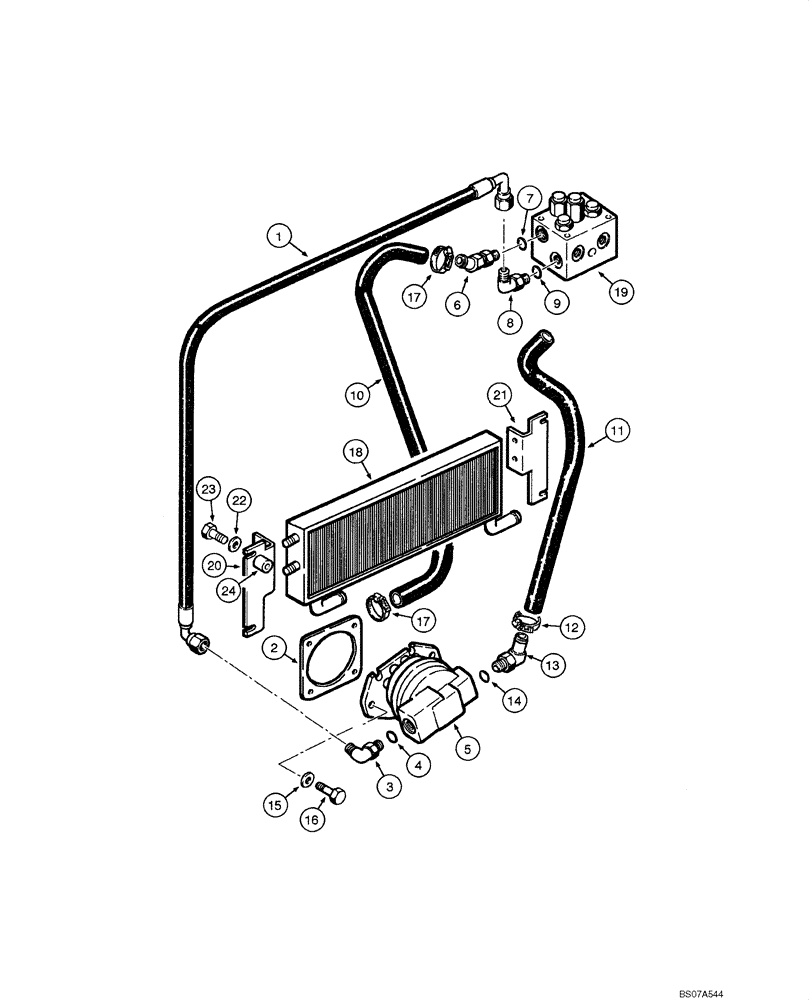

Запчасти Case 845 DHP (08.30[00]) - ENGINE COOLING SYSTEM - REVERSE FAN HYDRAULIC PUMP (08) - HYDRAULICS

1

75326972

HOSE ASSY.

1шт.

2

70188771

GASKET,0.79mm Thk

1шт.

3

87362914

HYD CONNECTOR

1шт.

4

70926843

O-RING,-125, Cl 8, 1.299" ID x .103" Thk

1шт.

5

73162806

HYDRAULIC PUMP,23.11 CC

1шт.

5

73162806R

REMAN-HYD PUMP

845 DHP MOTOR GRADER TIER 3 (NA) ASN N7AF03356 (1/07-)

1шт.

5

73162806C

CORE-HYDRAULIC PUMP

Return Number

1шт.

6

75326990

FITTING

1шт.

7

14438185

O-RING,24mm ID x 3mm

1шт.

8

79067025

ELBOW

Incl. Ref. 9

1шт.

9

14457981

O-RING,1.049" ID x 0.103" Width

2шт.

10

87376427

HOSE,25.4mm ID x 1050mm L, SAE 100R3

1шт.

11

75325657

HYDRAULIC HOSE,32.00 mm ID x 390.00 mm, SAE 100R4

1шт.

12

214-2122

CLAMP,39.62mm - 45.97mm

2шт.

13

75323722

HYD CONNECTOR

1шт.

14

70925935

O-RING,-223, Cl 8, 1.609" ID x .139" Thk

1шт.

15

10517071

LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk

4шт.

16

11112631

BOLT,Hex, M12 x 35mm, Cl 10.9

4шт.

17

87372829

CLAMP,1.40" - 1.56"

2шт.

18

87382507

OIL COOLER

Radiator Oil

1шт.

19

REF

INSTRUCTION

See Figure 08.33

1шт.

20

87376364

SUPPORT

Bracket LH

1шт.

21

87376821

SEAL

1шт.

22

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

4шт.

23

16044331

SCREW,Hex, M8 x 1.25 x 55mm, Cl 10.9

4шт.

24

75223894

SPACER,12.4mm ID x 16mm OD x 40mm L

4шт.
