Запчасти Case 845 DHP (08.29[00]) - ENGINE COOLING SYSTEM - FAN HYDRAULIC CIRCUIT (08) - HYDRAULICS

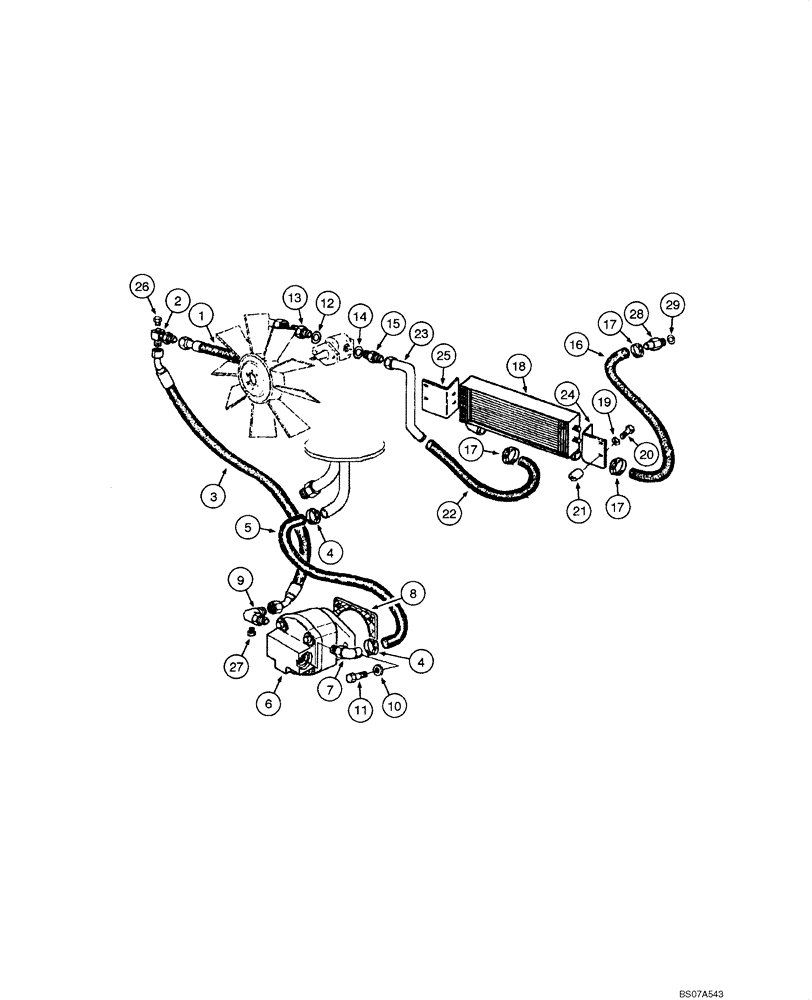

Схема запчастей Case 845 DHP - (08.29[00]) - ENGINE COOLING SYSTEM - FAN HYDRAULIC CIRCUIT (08) - HYDRAULICS
16
26
4
28
23
17
15
12
8
19
14
21
4
17
24
18
5
25
13
6
27
3
1
2
17
22
7
29
11
20
9
10

Артикул

Название

Примечание

Количество

1

87394148

HOSE,19mm ID x 440mm L, SAE 100R2

Tube

1шт.

2

75325032

HYD CONNECTOR

1шт.

3

75325055

HOSE,19mm ID x 750mm L, SAE 100R2

1шт.

4

214-2122

CLAMP,39.62mm - 45.97mm

8шт.

5

75325657

HYDRAULIC HOSE,32.00 mm ID x 390.00 mm, SAE 100R4

1шт.

6

Ref.

1шт.

7

753232722

Connector

1шт.

8

70188771

GASKET,0.79mm Thk

1шт.

9

8736914

Connector

1шт.

10

10517071

LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk

4шт.

11

11112431

SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd

2шт.

12

70921214

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

13

70921228

HYD CONNECTOR

Connector

1шт.

14

70921206

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

15

70921217

HYD CONNECTOR

1шт.

16

87376433

HOSE,25.4mm ID x 600mm L, SAE 100R3

1шт.

17

87372829

CLAMP,1.40" - 1.56"

4шт.

18

87382507

OIL COOLER

1шт.

19

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

4шт.

20

16044331

SCREW,Hex, M8 x 1.25 x 55mm, Cl 10.9

4шт.

21

75223894

SPACER,12.4mm ID x 16mm OD x 40mm L

4шт.

22

75325497

HYDRAULIC HOSE,25.40 mm ID x 900.00 mm, SAE 100R3

1шт.

23

73164378

PIPE

1шт.

24

87376281

SUPPORT

Bracket RH

1шт.

25

87376364

SUPPORT

Bracket LH

1шт.

26

70919134

PLUG

1шт.

27

70901652

PLUG

1шт.

28

87363148

HYD CONNECTOR

1шт.

29

14438285

O-RING,29.5mm ID x 3.0mm

1шт.

Выбрано товаров: 29
