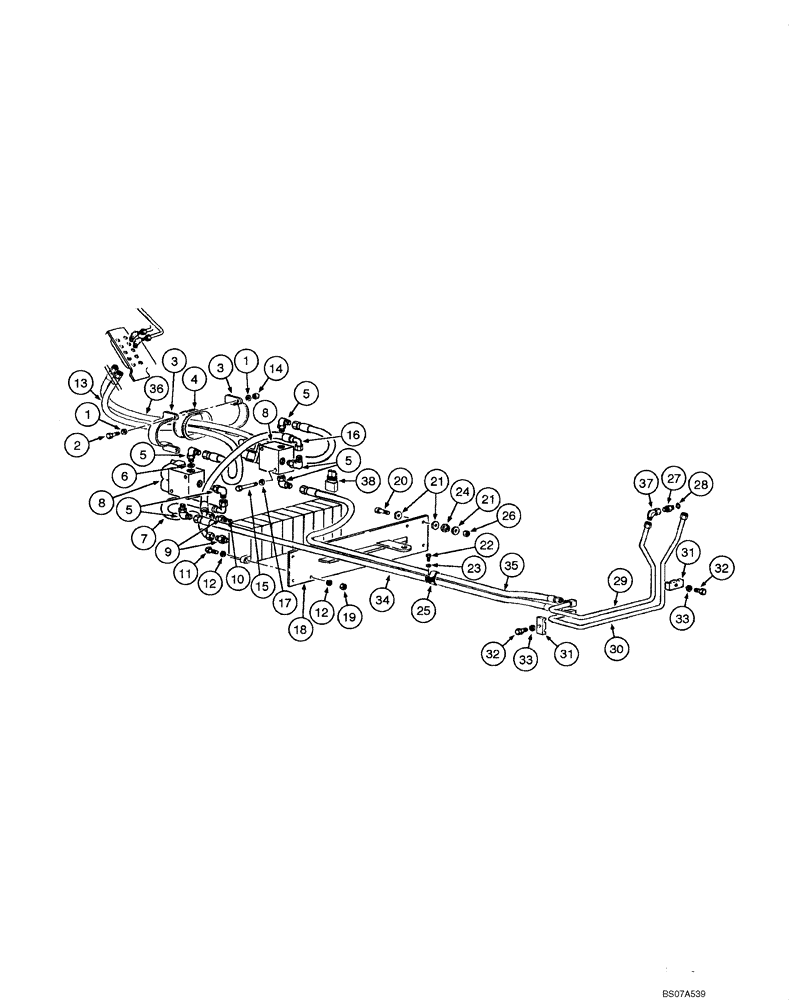

Запчасти Case 845 DHP (08.25[00]) - SCARIFIER AND RIPPER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

10519621

WASHER,8.15mm ID x 17mm OD x 2mm Thk

4шт.

2

16044031

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

3

75750315

Clamp

2шт.

4

75252375

GUARD

1шт.

5

70922523

ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

6шт.

6

70921885

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

7

75251175

FLEXIBLE HOSE

1шт.

8

REF

INSTRUCTION

Valve Solenoid; See Figure 08.70

2шт.

9

70922522

HYD CONNECTOR

2шт.

10

70921885

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

70921565

SCREW

4шт.

12

70630753

WASHER

8шт.

13

75252830

FLEXIBLE HOSE

1шт.

14

14094910

NUT,Weld, M8

2шт.

15

14309271

SCREW,M6 x 65mm

Bolt

4шт.

16

75251176

FLEXIBLE HOSE

1шт.

17

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

4шт.

18

73162730

PLATE

1шт.

19

70911026

NUT

4шт.

20

11107031

BOLT,Hex, M10 x 45mm, Cl 10.9

4шт.

21

12644324

WASHER,10.2mm ID x 35mm OD x 3mm Thk

9шт.

22

70927400

BOLT

1шт.

23

70915815

WASHER

1шт.

24

75249628

WASHER

4шт.

25

70929872

CLAMP

1шт.

26

11701721

NUT,M10, Cl 10

3шт.

27

70921409

HYD CONNECTOR

2шт.

28

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

29

75257120

RIGID TUBE

1шт.

30

75257122

RIGID TUBE

1шт.

31

70623355

COLLAR

2шт.

32

11106831

SCREW,Hex, M10 x 40mm, Cl 10.9, Full Thd

2шт.

33

12638601

WASHER,M10 x 18 x 2

2шт.

34

7525831

Hose

1шт.

35

75251180

FLEXIBLE HOSE

1шт.

36

75251177

FLEXIBLE HOSE

1шт.

37

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

2шт.

38

75322270

ELEC CONNECTOR

2шт.
