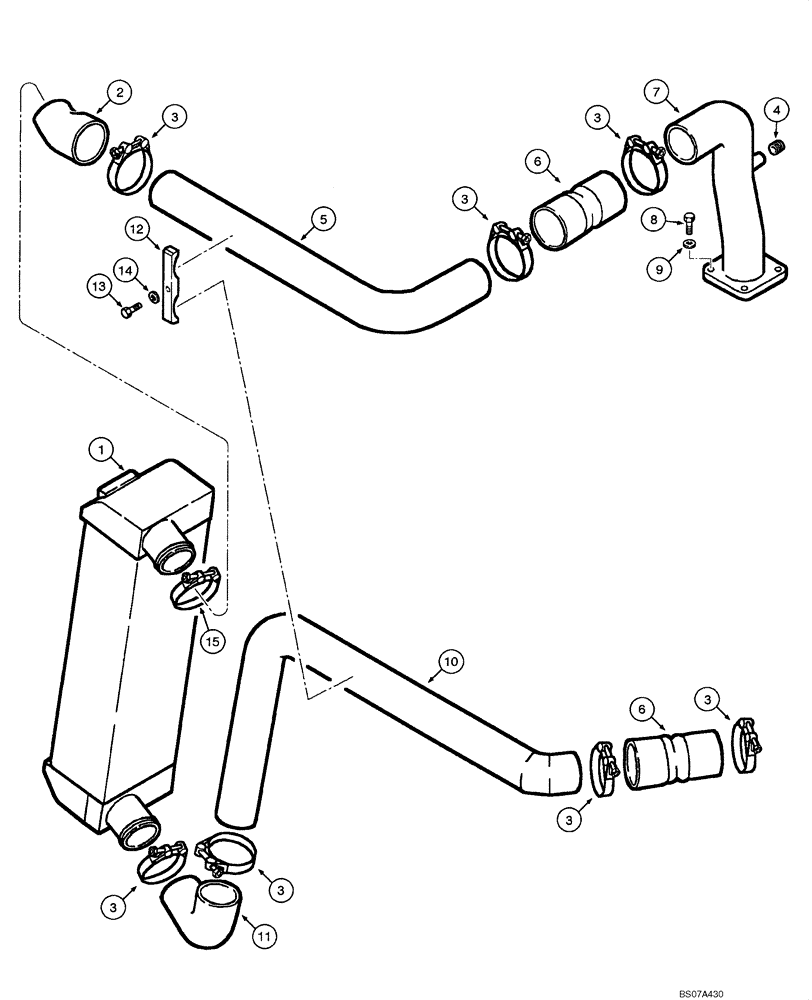

Запчасти Case 845 DHP (02.06[00]) - COOLING SYSTEM - AFTERCOOLER (02) - ENGINE

1

73164347

COOLER ASSY.

1шт.

2

75324883

HOSE,76.20 mm ID x 148.00 mm

1шт.

3

L115549

CLAMP,69.85mm - 92.08mm

7шт.

4

70901651

PLUG

1шт.

5

75324737

PIPE

1шт.

6

75260116

HOSE

2шт.

7

87516296

TUBE,35 mm DIA

Tube

4шт.

8

16043931

SCREW,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

4шт.

9

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

10

87516295

TUBE,76 - 88.9 mm OD x 822, 763 mm L

Tube

1шт.

11

75324809

HOSE,76.20 mm ID x 125.00 mm

1шт.

12

75324931

CLAMP

1шт.

13

16044831

SCREW,Hex, M8 x 80mm, Cl 10.9

1шт.

14

12646821

WASHER,10.2mm ID x 25mm OD x 2mm Thk

1шт.

15

L116820

CLAMP,82.55mm - 104.78mm

1шт.
