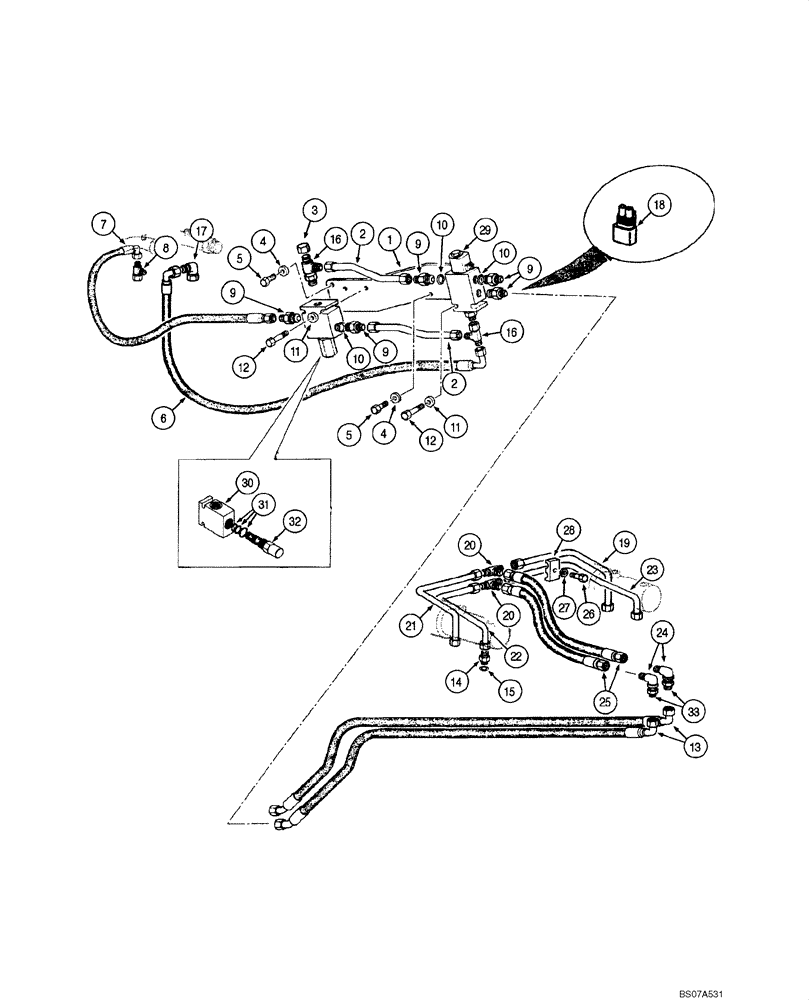

Запчасти Case 845 DHP (08.11[00]) - BLADE HYDRAULIC CIRCUIT - LOCK (5 HOLES) (08) - HYDRAULICS

1

75280725

SUPPORT

1шт.

2

15260090

2шт.

3

70919552

CAP

1шт.

4

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

5

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

2шт.

6

75252434

FLEXIBLE HOSE

1шт.

7

75252433

FLEXIBLE HOSE

1шт.

8

79067002

HYD CONNECTOR

3шт.

9

70922522

HYD CONNECTOR

Incl. 10

4шт.

10

70921885

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

11

70928190

WASHER

2шт.

12

70930238

SCREW

4шт.

13

75252380

FLEXIBLE HOSE

2шт.

14

70922457

HYD CONNECTOR

4шт.

15

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

16

70930806

3 WAY CONNECTION

1шт.

17

70921013

ELBOW

1шт.

18

75322270

ELEC CONNECTOR

1шт.

19

73127114

RIGID TUBE,9.52 mm OD, 260, 208 mm Length

1шт.

20

70919087

3 WAY CONNECTION

2шт.

21

73127111

RIGID TUBE

1шт.

22

73127112

RIGID TUBE

1шт.

23

73127113

RIGID TUBE

1шт.

24

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

2шт.

25

70659547

HYDRAULIC HOSE

2шт.

26

70927361

SCREW

2шт.

27

70910287

LOCK WASHER

2шт.

28

70695523

CLAMP

2шт.

29

73124881

HYDRAULIC VALVE

See Figure 08.68

1шт.

30

75323837

HYDRAULIC VALVE

Incl. 31,32

1шт.

31

75313876

SEAL KIT

1шт.

32

75313877

HYDRAULIC VALVE

1шт.

33

218-1254

LOCK NUT,Blkhd, 9/16"-18

2шт.
